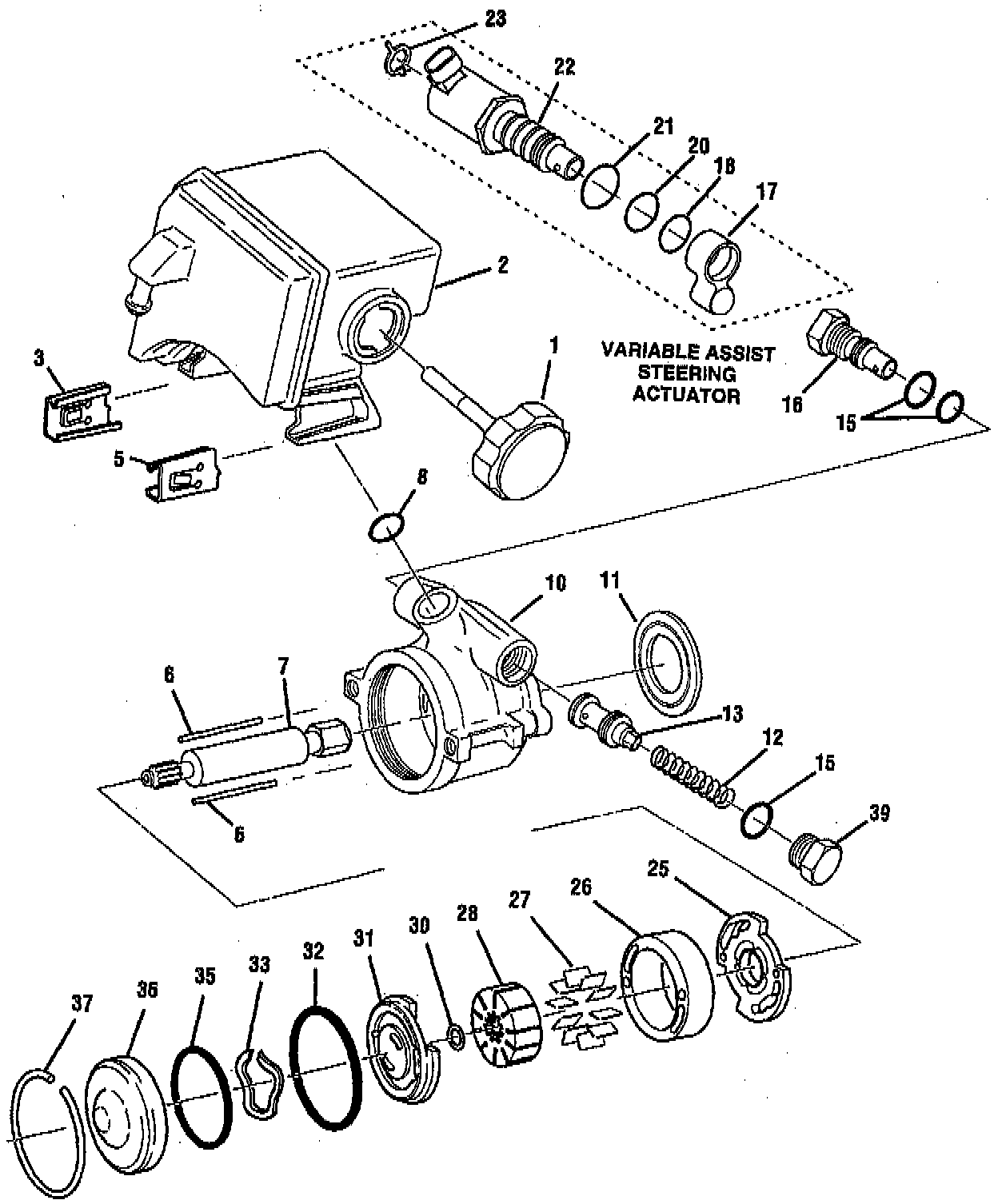

Power Steering Pump
End Plug (39) 75 N.m (55 ft. lbs.)
Power Steering Pump Fitting 75 N.m (55 ft. lbs.)
Power Steering Pump Hose Fitting Nut 27 N.m (20 ft. lbs.)
O-ring Union Fitting (16) 75 N.m (55 ft. lbs.)
Variable Assist
Steering Actuator (22) 62 N.m (46 ft. lbs.)
