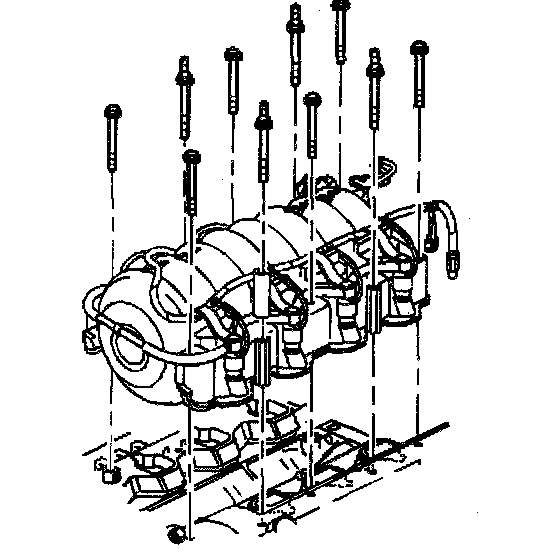

Intake Manifold Torque & Sequence
Tighten the
intake manifold bolts and studs starting from the center and working outward in a circular pattern to
10 Nm (89 inch lbs.).

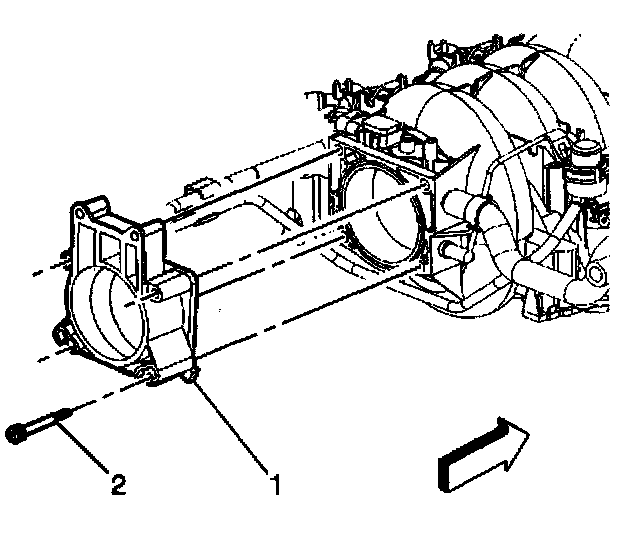

Tighten the throttle body spacer bolts to
12 Nm (106 inch lbs.).

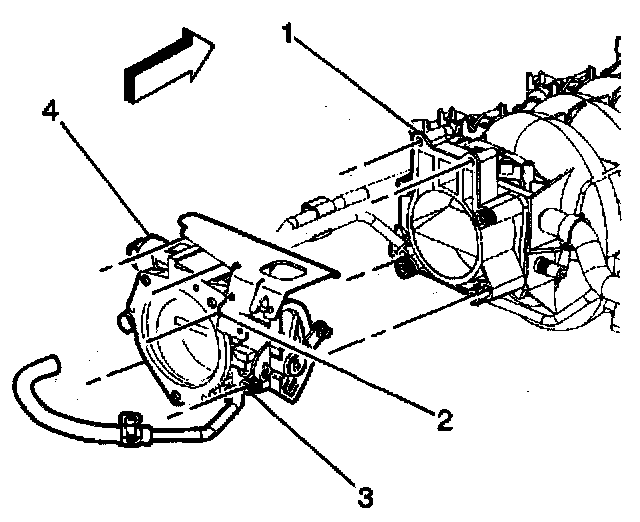

Tighten the throttle body retaining bolts to
12 Nm (106 inch lbs.).
