A/C System

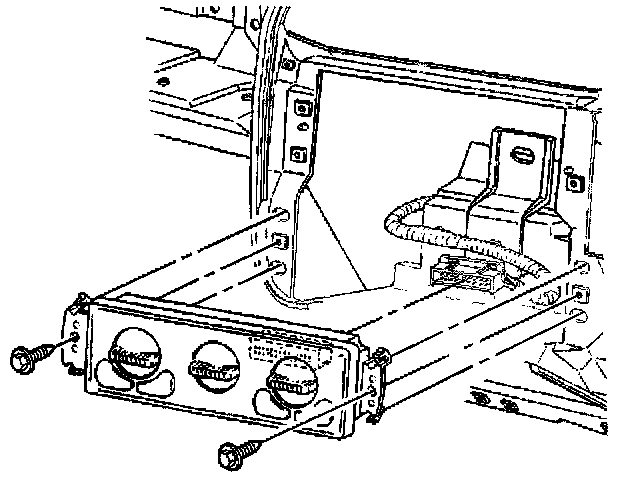

Removal Procedure

1. Remove the instrument panel accessory trim plate.
2. Depress the control assembly retaining tabs, and remove the control assembly from the instrument panel.
3. Remove the vacuum connectors, as necessary.
4. Remove the electrical connectors, as necessary.

Installation Procedure

1. Install the electrical connectors, as necessary.
2. Install the vacuum connectors, as necessary.
3. Install the control assembly into the instrument panel, ensuring that the control assembly retaining tabs lock into place.
4. Install the instrument panel accessory trim plate.
