Heating System

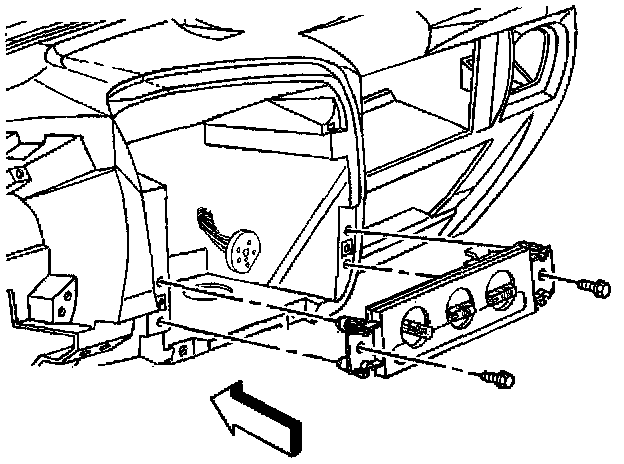

Removal Procedure

1. Remove the instrument panel accessory trim plate.





2. Remove the control assembly screws.
3. Depress the control assembly retaining tabs and remove the control assembly from the instrument panel.





4. Disconnect the vacuum harness connectors (1) from the control assembly.





5. Disconnect the electrical connectors from the control assembly.

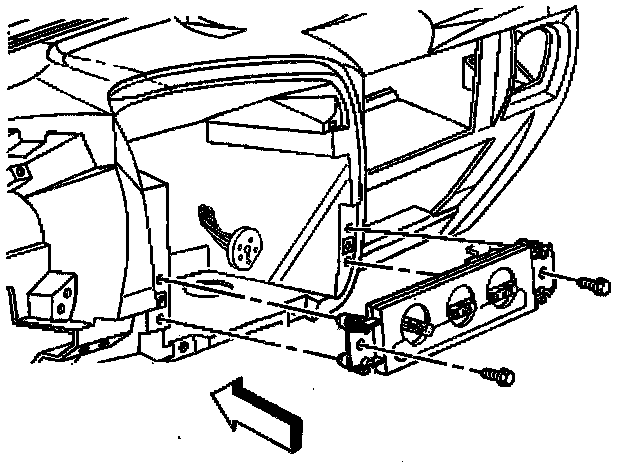

Installation Procedure





1. Connect the electrical connectors to the control assembly.





2. Connect the vacuum harness connectors (1) to the control assembly.





3. Install the control assembly to the instrument panel. Ensure that all 4 retaining tabs lock into place.
4. Install the control assembly screws.

Tighten
Tighten the screws to 1.9 N.m (17 lb in).

5. Install the instrument panel accessory trim plate.
6. Perform a heater output temperature check. Refer to Heater Output Temperature Check. Testing and Inspection
