Vehicle Speed Sensor: Locations
Transfer Case:

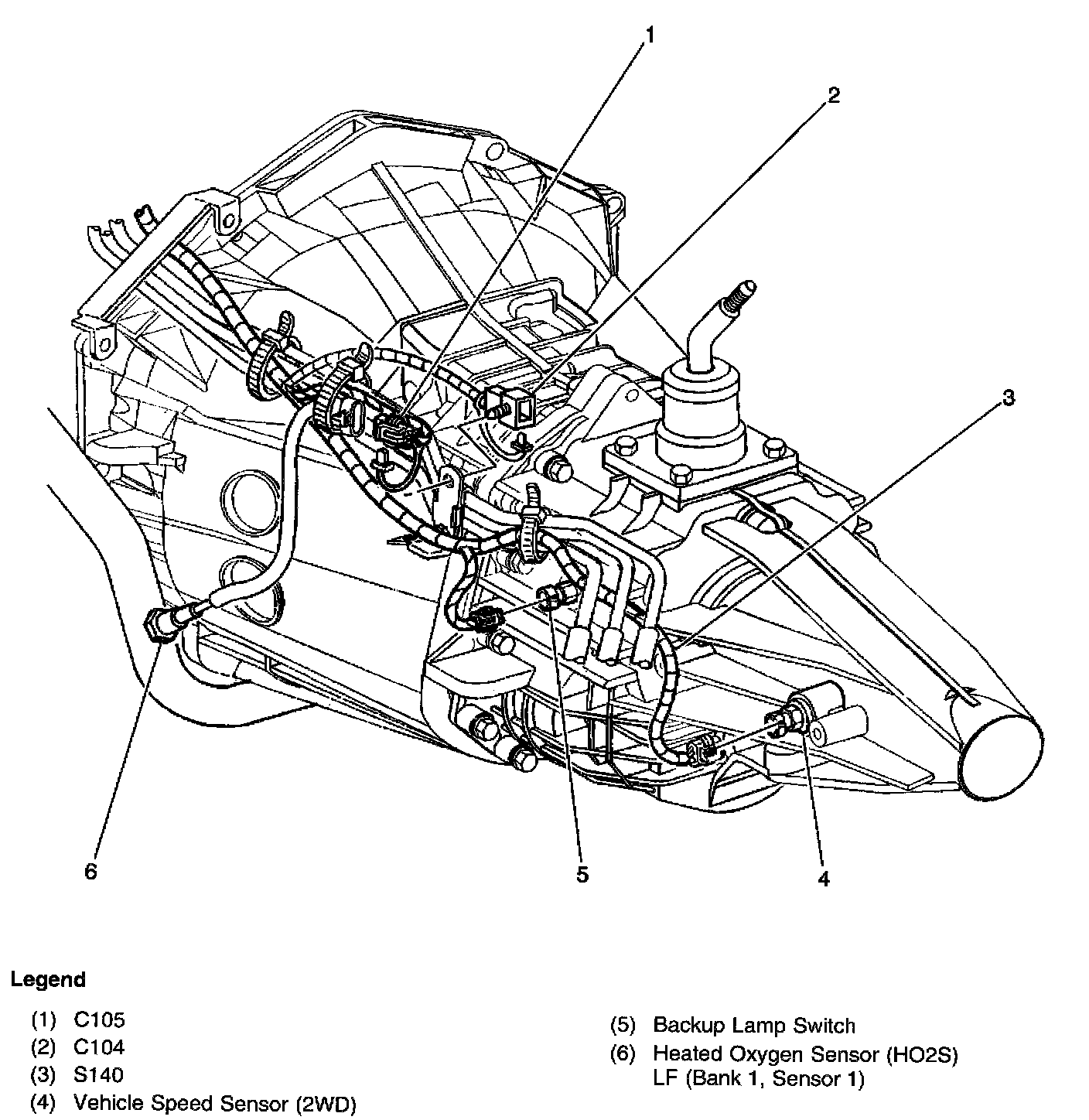

Manual Transmission, LH (4.3 L) 2WD:

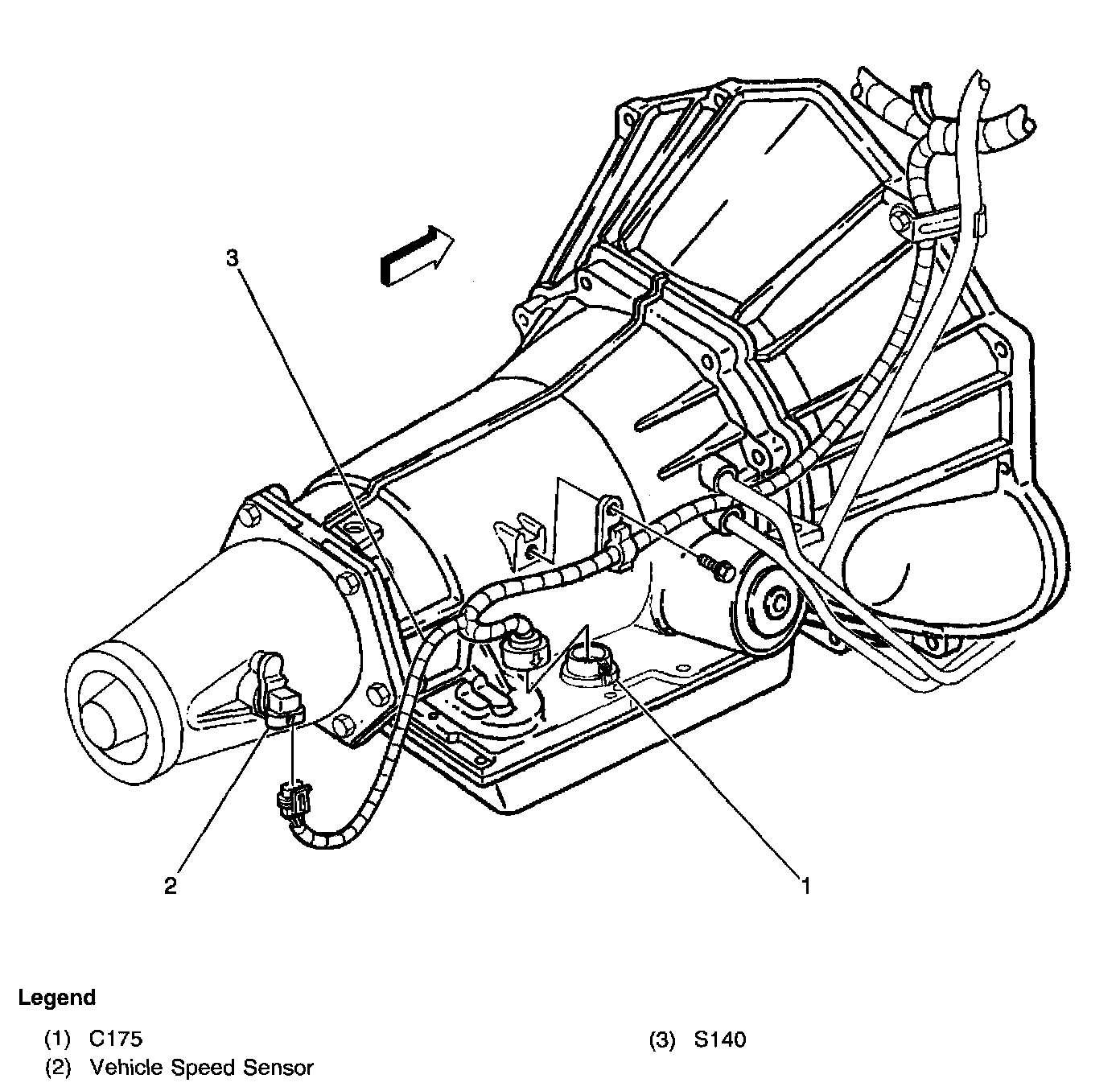

Automatic Transmission, RH:
(W/ A/T, W/O 4WD) RH rear of the A/T
(W/ M/T W/O Transfer Case) To the left rear of the M/T
(W/ Auto 4WD) To RH rear of the auto 4WD transfer case
