Case, A/T

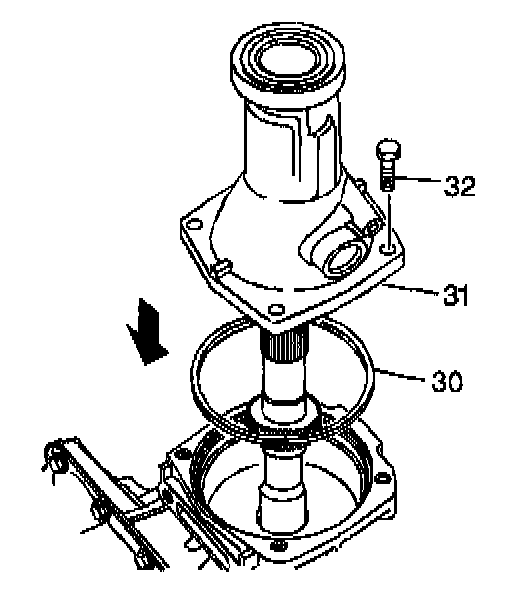

Case extension (31)
to Case bolts (32) 35 Nm (26 ft. lbs.)

Converter Housing To Case Screw 65.0-75.0 Nm (48-55 ft. lbs.)

Oil Passage Cover To Case Bolt 8-14.0 Nm (6-10 ft. lbs.)

Park Brake Bracket To Case Bolt 27.0-34.0 Nm (20-25 ft. lbs.)

Valve Body To Case Bolt 8.0-14.0 Nm (6-10 ft. lbs.)

Pump Assembly To Case Bolt 26.0-32.0 Nm (19-24 ft. lbs.)

Plate To Case Bolt (Shipping) 27.0-34.0 Nm (20-25 ft. lbs.)

Transmission Oil Pan To Case Bolt 9.5-13.8 Nm (7-10 ft. lbs.)
