Steering Gear

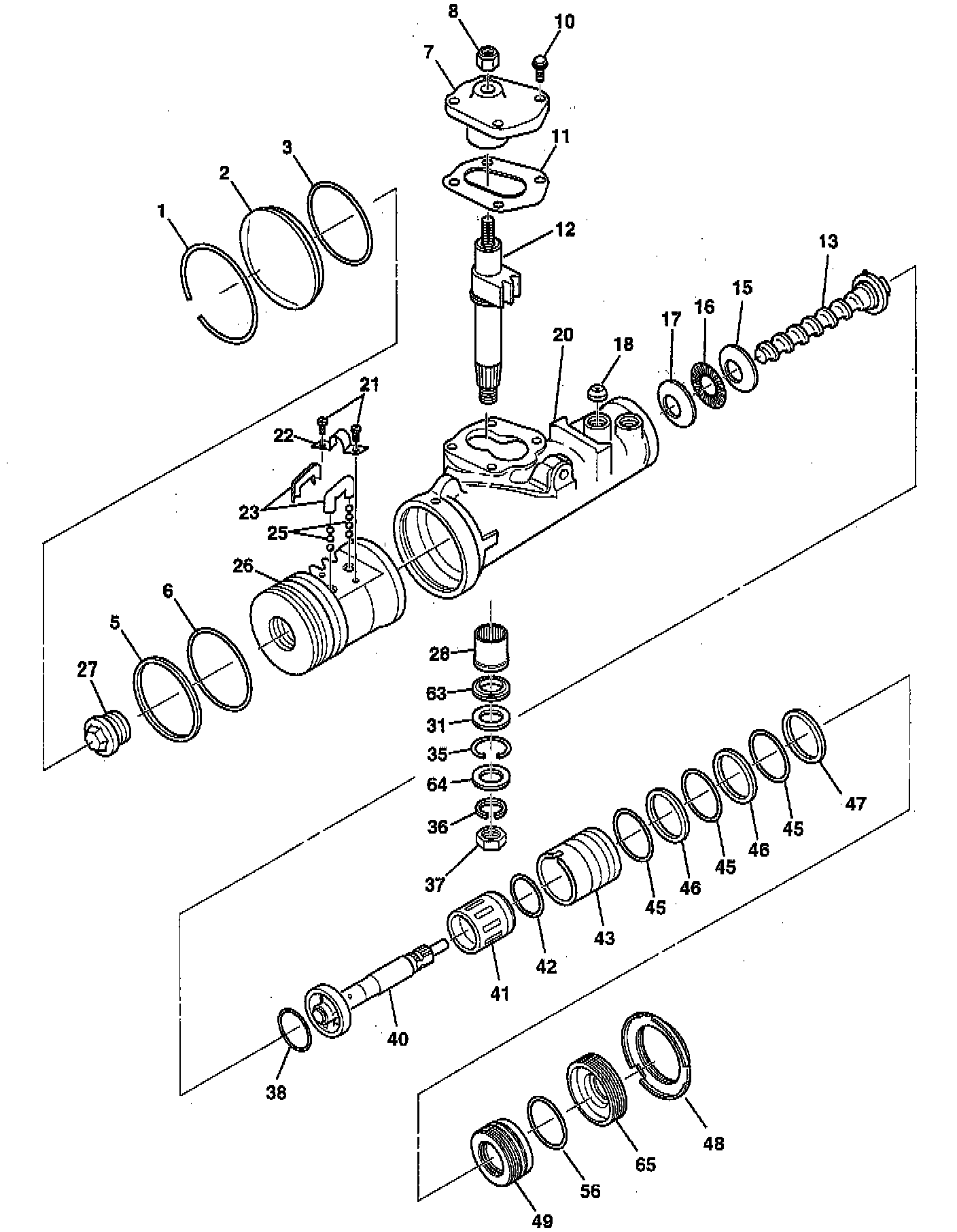

708 Power Steering Gear:





Fastener Tightening Specifications
Clamp Bolt, Intermediate Shaft 35 Nm (26 ft. lbs.)
Coupling Shield Retainer And Lock Nut (48) 109 Nm (80 ft. lbs.)
Gear To Frame Bolt 75 Nm (55 ft. lbs.)
Rack Piston Guide Clamp Screw (21) 58 Nm (43 inch lbs.)
Rack Piston Plug (27) 150 Nm (111 ft. lbs.)
Steering Gear Adjuster Lock Nut (8) 49 Nm (36 ft. lbs.)


Adjustment Tightening Specifications
Pitman Shaft Over-Center Preload * (40) 0.7-1.1 Nm (6-10 inch lbs.)
Steering Gear Adjuster Nut Assembly (65) 30 Nm (22 ft. lbs.)

* Figure is in addition to worm shaft thrust bearing preload and valve and seal drag.
