Outside Door Handle
Removal Procedure1. Close the window.
2. Remove the door trim panel.
3. Remove the water deflector.
4. Remove the outside door handle screw access hole plug.

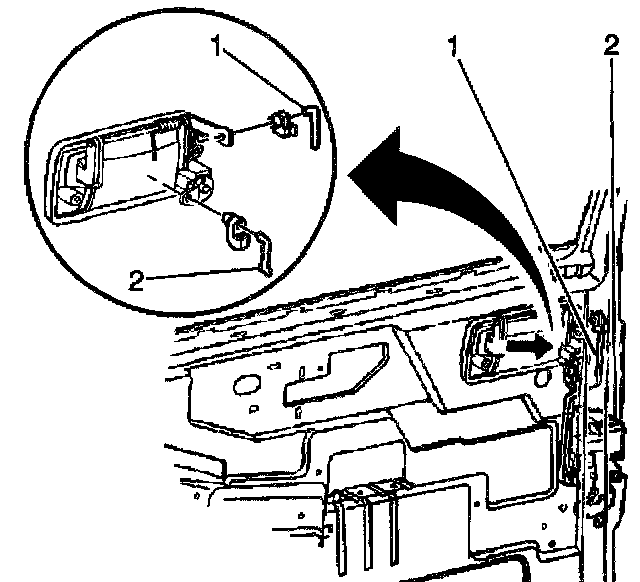

5. Remove the outside door lock rod from the handle (2).
6. Remove the outside door handle rod from the handle (1).
7. Remove the screws that retain the outside door handle to the door panel.
8. Remove the outside door handle from the door.
9. Remove and retain the lock cylinder from the outside door handle.
Installation Procedure
1. Install the lock cylinder to the outside door handle.
2. Install the outside door handle to the door.
3. Install the screws that retains the outside door handle to the door panel.
Tighten
Tighten the screws to 4 N.m (35 lb in).
4. Install the outside door lock rod to the handle (2).
5. Install the outside door handle rod to the handle (1).
6. Install the outside door handle screw access hole plug.
7. Install the water deflector.
8. Install the door trim panel.
