Power Accessory Switch Panel






Removal Procedure

1. Disconnect the negative battery cable.

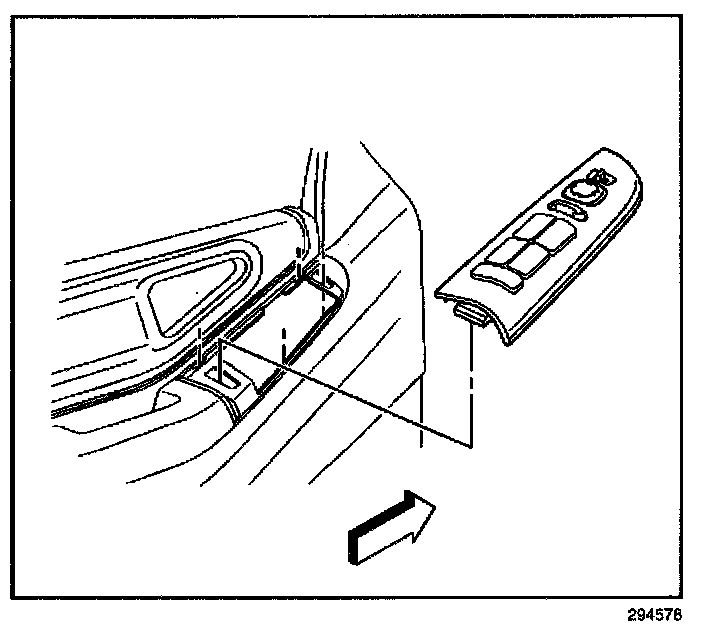

2. Remove the power accessory switch mounting cover from the door.
Use a flat-bladed tool in order to carefully pry the cover up at the front leading edge.
3. Disconnect the electrical connectors from the switches, if equipped.
4. Remove the switches from the switch mounting panel, if equipped.

Installation Procedure

1. Install the switches to the switch mounting panel, if equipped.
2. Connect the electrical connectors to the switches, if equipped.
3. Install the power accessory switch mounting cover to the door.
4. Position the cover and snap the cover into place.
5. Connect the negative battery cable.
