Hose Replacement

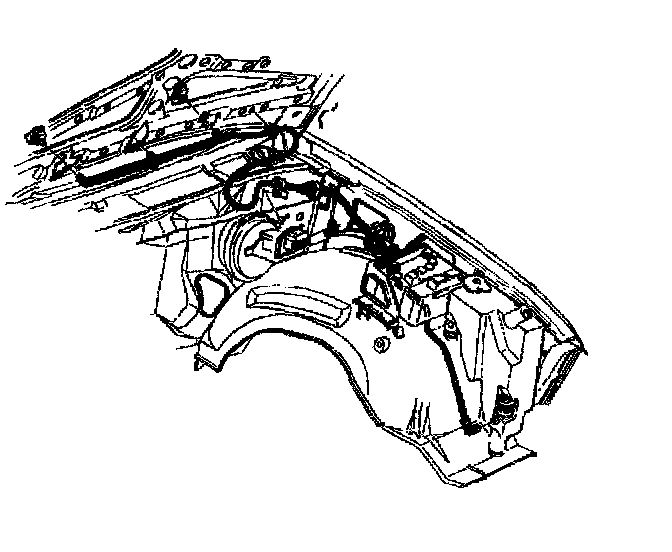

The washer hose routing begins at 2 hood-mounted nozzles. The one-piece washer hose clips to the inside of the hood. The hose clips to the left side of the brake booster flange. A strainer assembly is near the joint of the left tender and the cowl. The routing continues along the left fender. The routing ends at the washer solvent container.
