Front Camber Adjustment

1. Reach around the tire, using the appropriate extension and socket (1).

Important: When camber adjustment is necessary, refer to Front Suspension for instructions on modifying the front strut.

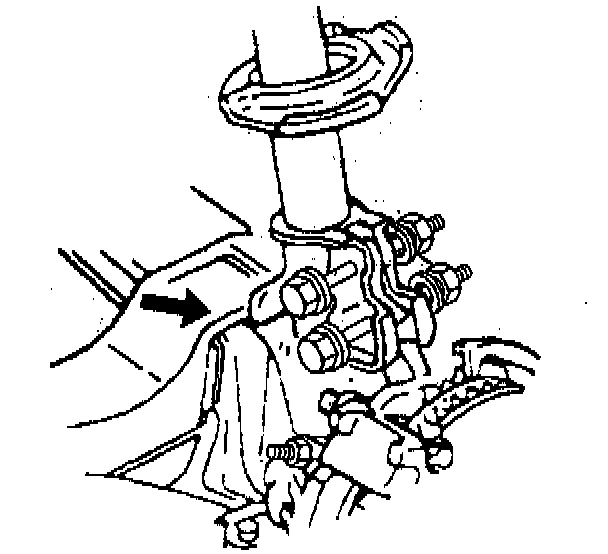

2. Loosen both strut to knuckle nuts (1) just enough to allow for movement.

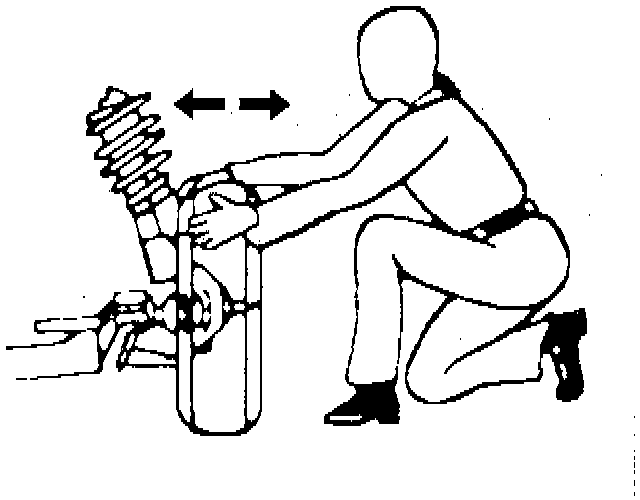

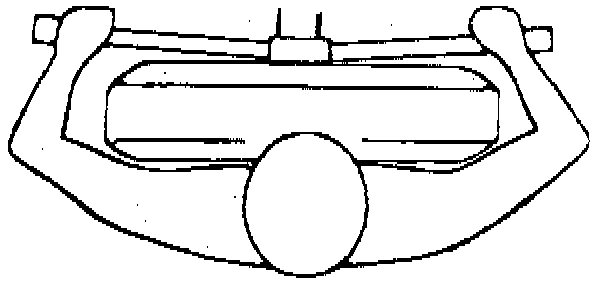

3. Adjust the camber to specification by moving the top of the wheel in or out.

Tighten
- Tighten the strut to knuckle nuts to 180 N.m (133 lb ft).
