Front Toe Adjustment





1. Ensure that the steering wheel is set in a straight ahead position within +/- 5 degrees.

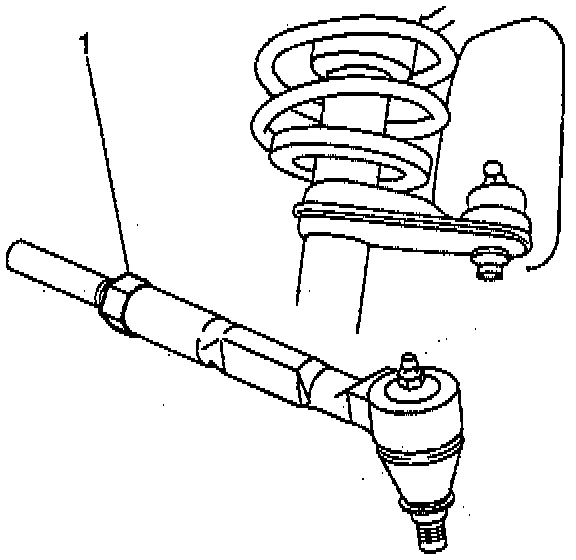

2. Loosen the jam nut (1).
3. Adjust the toe to specification by turning the adjuster.

Tighten
- Tighten the jam nut (1) to 10 N.m (89 lb in) plus 210°.
