Fuse Block: Service and Repair

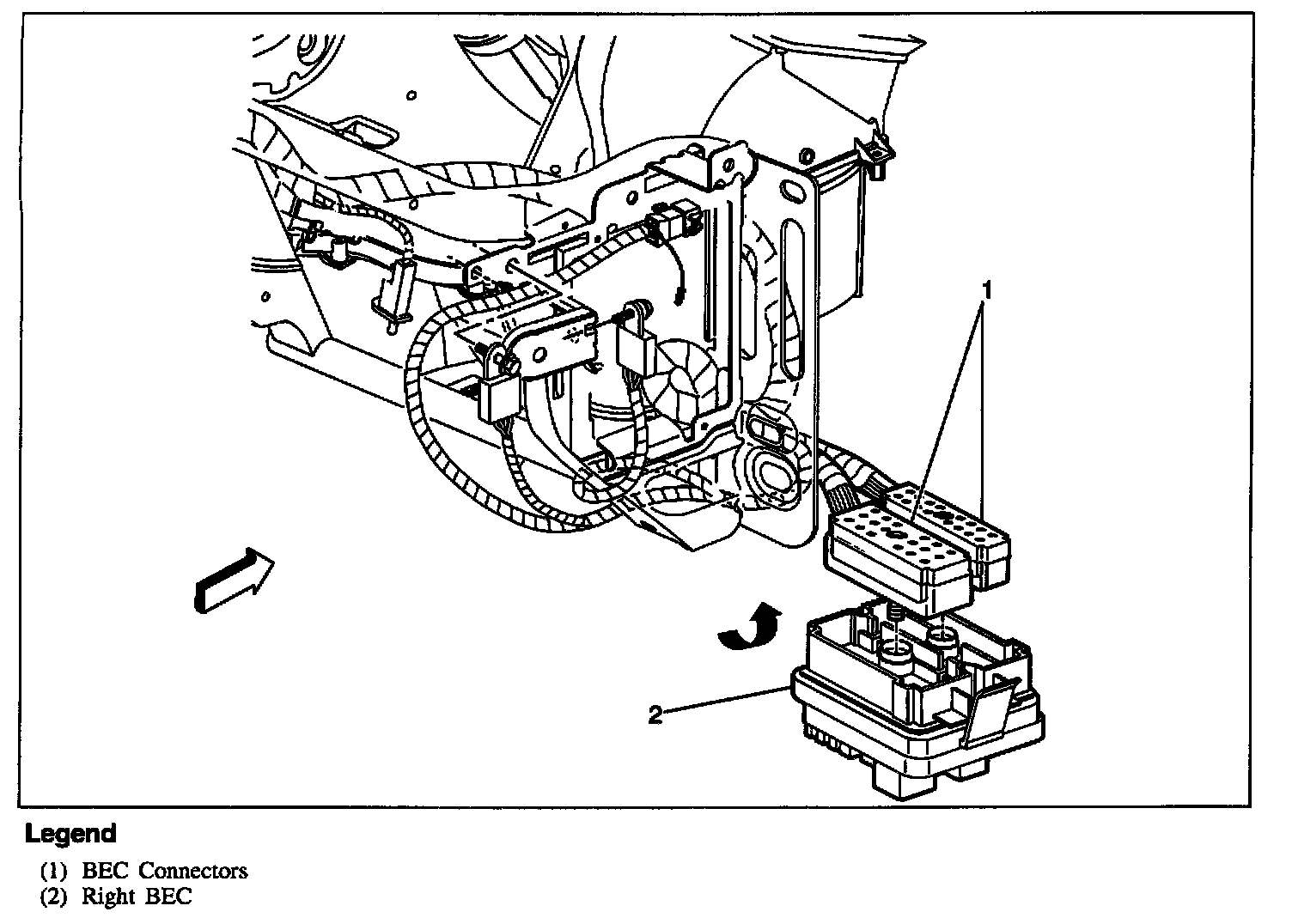

Instrument Panel Bussed Electrical Centers (BEC)Right BEC:
Left BEC:
REMOVE OR DISCONNECT 1.
Negative battery cable.
2.
End cap from instrument panel.
3.
Unsnap EEC from bracket.
4.
Harness from BEC.
INSTALL OR CONNECT 1.
Harness to EEC.
2.
Snap EEC to bracket.
3.
End cap to instrument panel.
4.
Negative battery cable
