Fuel Level Sensor: Service and Repair

Removal Procedure
1. Relieve fuel system pressure. Refer to Fuel Pressure Release Procedure.
2. Drain fuel tank. Refer to Draining Fuel Tank.

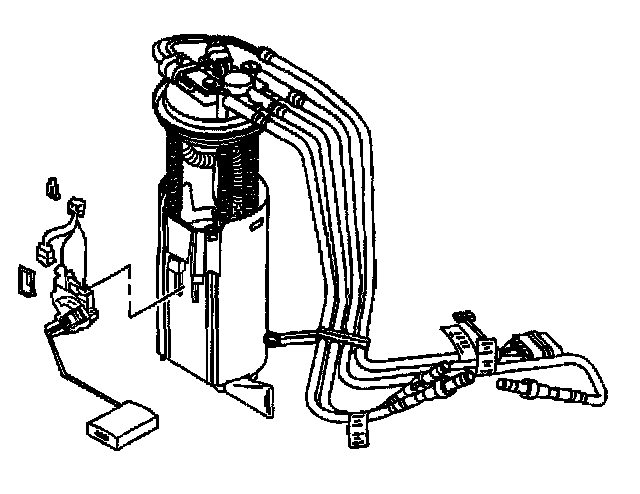

3. Remove the fuel tank. Refer to Fuel Tank.
4. Remove the fuel sender assembly. Refer to Fuel Tank Unit.
5. Remove the fuel level sensor from modular fuel sender.

Installation Procedure
1. Fuel level sensor to modular fuel sender.
2. Install the fuel sender assembly. Refer to Fuel Tank Unit.
3. Install the fuel tank. Refer to Fuel Tank.
4. Refill tank.
5. Check for fuel leaks.
5.1. Turn ignition to ON position for 2 seconds.
5.2. Then turn to OFF for 10 seconds.
5.3. Turn the ignition to ON position.
5.4. Check for fuel leaks.
