Front Door

WINDOW REGULATOR REPLACEMENT


REMOVAL PROCEDURE




1. Remove the door trim panel.
2. Remove enough of the door water deflector to access the window regulator.
3. Remove the door window assembly.

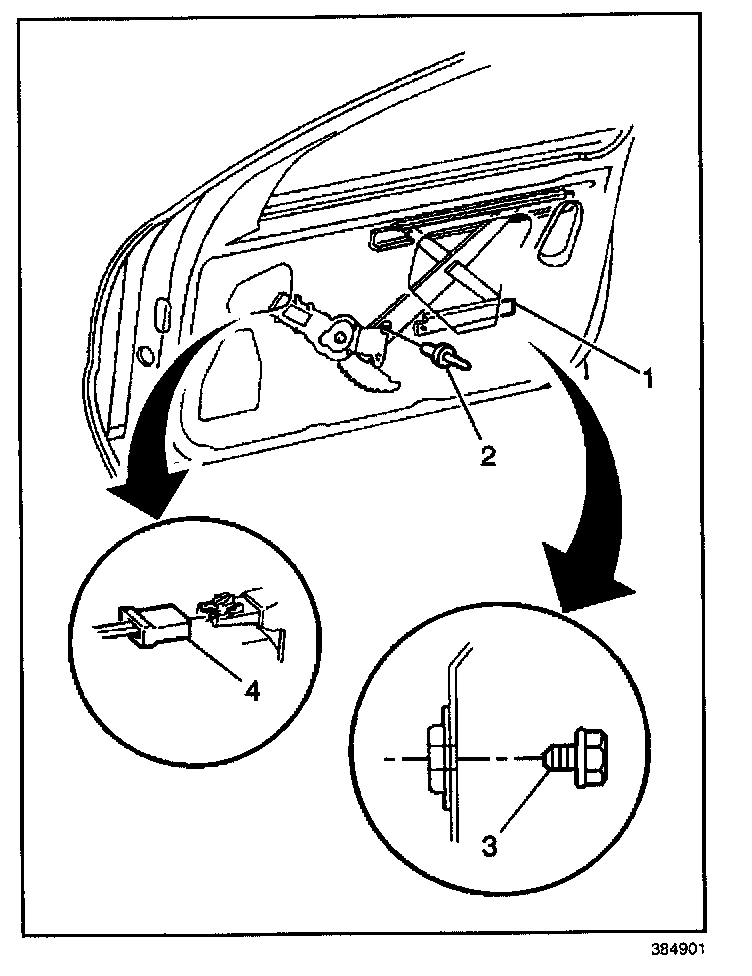

4. Remove the window regulator bolts (3).
5. Remove the regulator rivets (2).
6. Remove the window regulator (1).

INSTALLATION PROCEDURE




1. Install the window regulator (1).
2. Install the window regulator rivets (2).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the window regulator bolts (3).

Tighten
Tighten the bolt to 10.5 N.m (93 lb in).

4. Install the door window assembly.
5. Install the door water reflector.
6. Install the door trim panel.
