Front Door

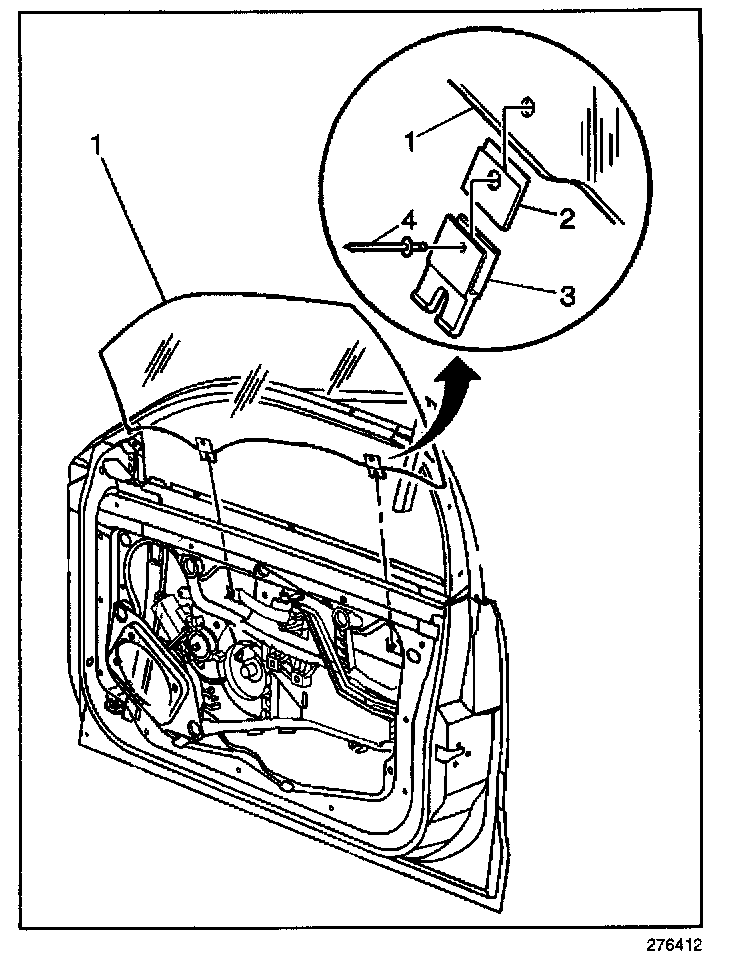

WINDOW REPLACEMENT






REMOVAL PROCEDURE
1. Remove the door trim panel.
2. Lower the front window in order to access the retaining nuts.
3. Remove the nuts.
4. Remove the rivet (4).
5. Remove the front window sash (3).
6. Remove the front window sash spacer (2).
7. Remove the window from the vehicle.

INSTALLATION PROCEDURE




1. Install the front window to the door.
2. Install the front window sash spacer (2).
3. Install the front window sash (3).
4. Install the rivet (4).
5. Install the retaining nuts.
6. Install the door trim panel.
