Front Fender Liner

REMOVAL PROCEDURE

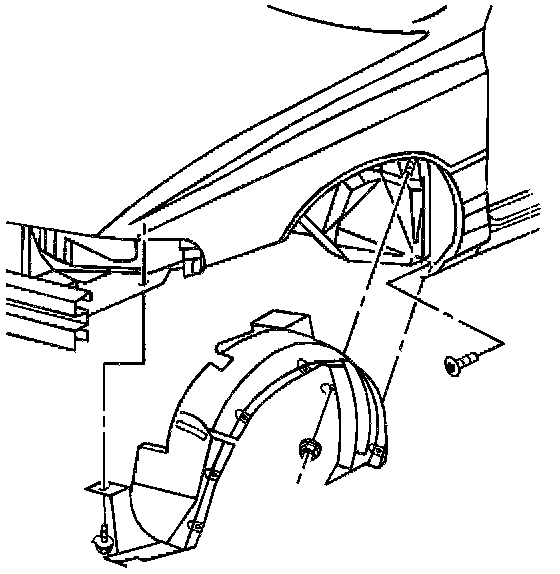

Front Fender Liner Replacement: Removal Procedure:

1. Remove the front fender liner screws.

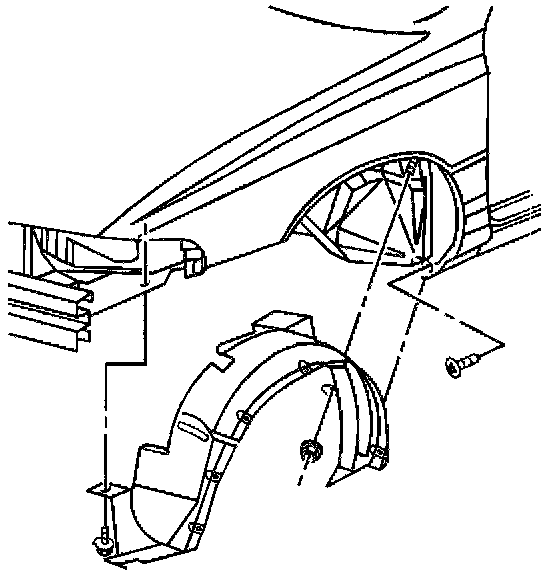

Front Fender Liner Replacement: Removal Procedure:

2. Remove the front fender liner nut.
3. Remove the front fender liner bolt at the lower engine compartment side rail.
4. Remove the front fender liner.

INSTALLATION PROCEDURE

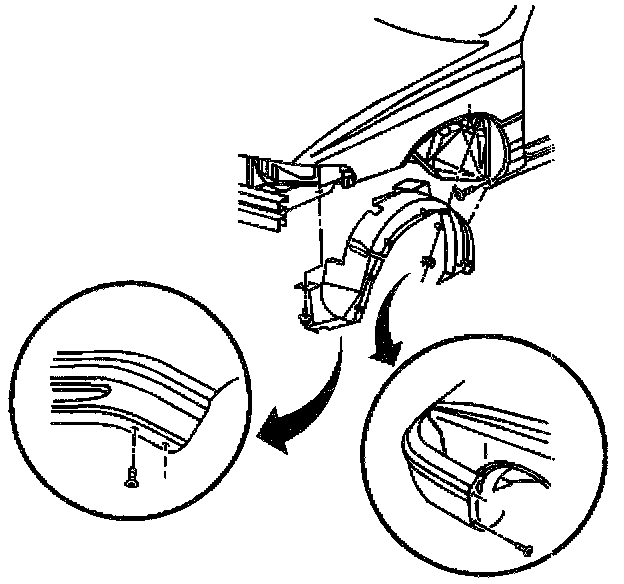

Front Fender Liner Replacement: Installation Procedure:

1. Install the front fender liner.
2. Install the front fender liner nut.

Tighten
Tighten the front fender liner nut to 4 N.m (35 lb in).

3. Install the front fender liner screw at the lower engine compartment side rail.

Tighten
Tighten the front fender liner screw to 2 N.m (18 lb in).

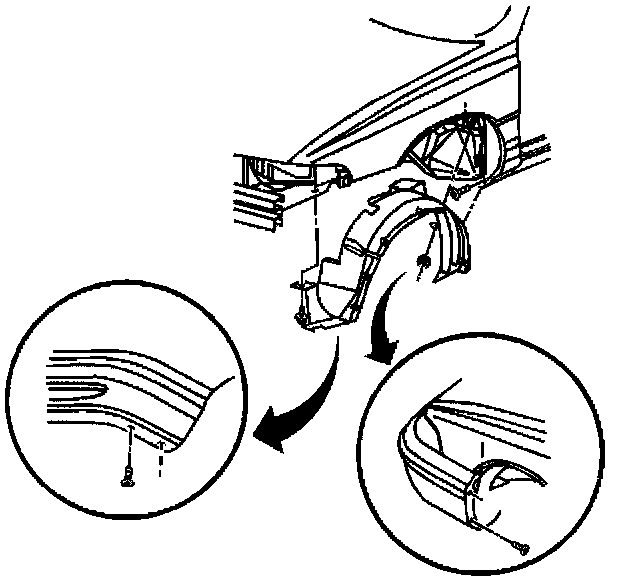

Front Fender Liner Replacement: Installation Procedure:

4. Install the front fender liner screws.

Tighten
Tighten the front fender liner screws to 2 N.m (18 lb in).
