System Operation

Unlock Driver's Door Only
Momentarily press the UNLOCK button in order to perform the following functions:
^ Unlock the driver's door only.
^ Illuminate the interior lamps for approximately 40 seconds or until the ignition is turned ON.

Unlock All Doors
Momentarily press the UNLOCK button a second time (within 5 seconds of the first press) in order to perform the following functions:

^ Unlock the remaining doors.
^ Illuminate the interior lamps for approximately 40 seconds or until the ignition is turned ON.

Lock All Doors
Press the LOCK button in order to perform the following functions:
^ Lock all of the doors.
^ Immediately turn off the interior lamps.

Rear Compartment Lid Release
If the vehicle transaxle is in PARK, a single press of the Rear Compartment (lower right) button will open the rear compartment lid. The interior lamps will not illuminate.

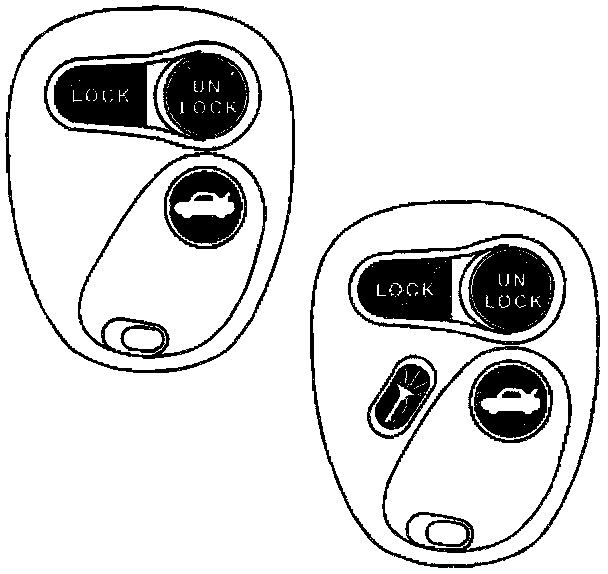

Remote Keyless Entry System Operation (basic):




Alarm
A single press of the Alarm (lower left) button performs the following functions:
^ Illuminates the interior lamps.
^ Intermittently sounds the horn.
^ Flashes the headlamps for 110 seconds or until the following conditions occur:
^ The Alarm button is pressed again.
^ The ignition key is turned to the RUN position.
