Scan Tool Displays Undefined DTC

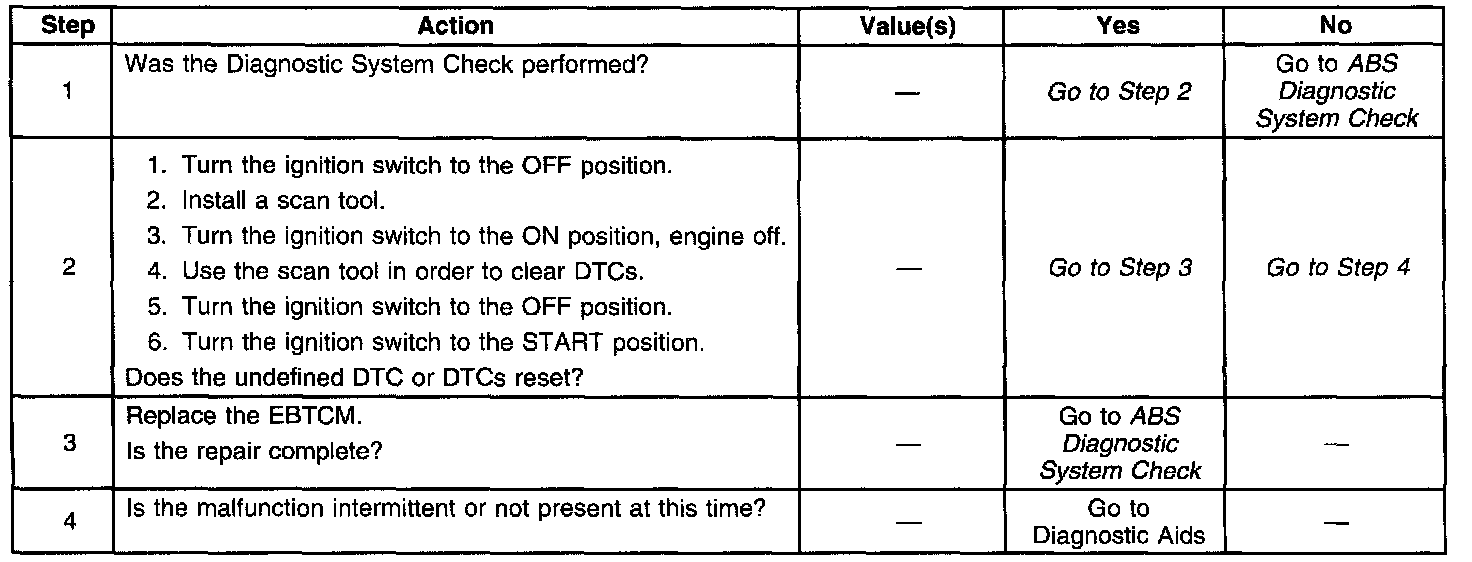

CIRCUIT DESCRIPTION This symptom table identifies undefined DTCs which are caused by an internal malfunction in the Electronic Brake
Traction Control Module (EBTCM).

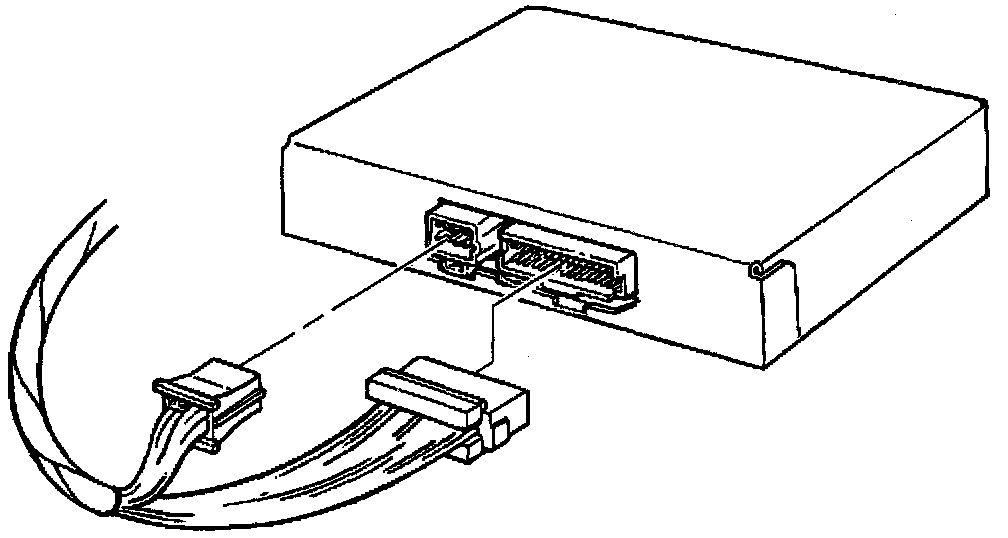

DIAGNOSTIC AIDS The following conditions may cause an intermittent malfunction:
-
A poor connection
-
Rubbed-through wire insulation
-
A broken wire inside the insulation
