Daytime Running Lamp (DRL) Module

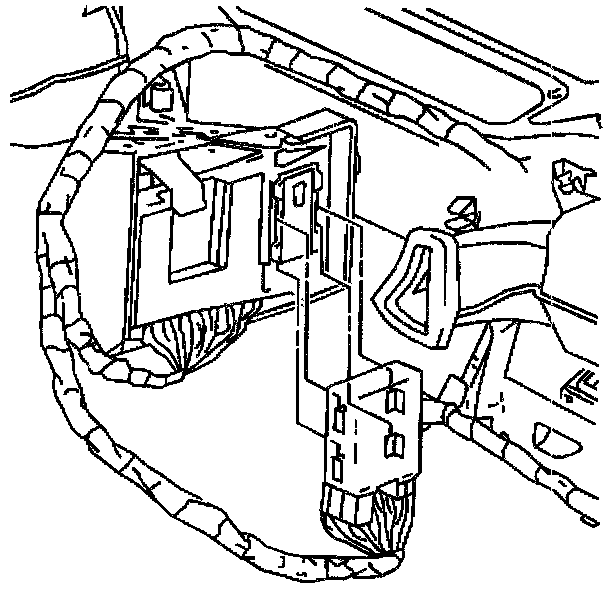

REMOVAL PROCEDURE

DRL Control Module Replacement: Removal Procedure:




1. Disconnect the negative battery cable.
2. Remove the LH instrument panel insulator.
3. Disconnect the electrical connectors from the Daytime Running Lamp (DRL) module.
4. Release the retaining tab and slide the DRL module down off of the BCM bracket to remove.

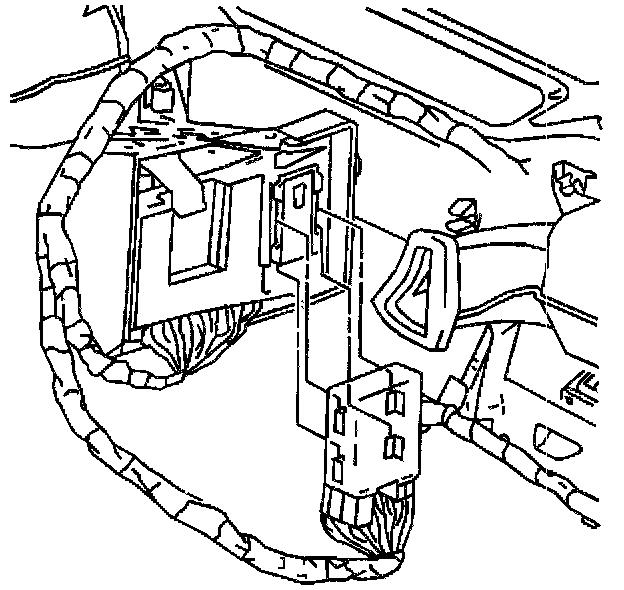

INSTALLATION PROCEDURE

DRL Control Module Replacement: Installation Procedure:




1. Position and slide the DRL module up onto the BCM bracket until the module is secured by the retaining tab.
2. Connect the electrical connectors to the DRL module.
3. Install the LH instrument panel insulator.
4. Connect the negative battery cable.
