Steering Mounted Controls Transmitter: Service and Repair

REMOVAL PROCEDURE

Steering Wheel Control Switches Replacement: Removal Procedure:

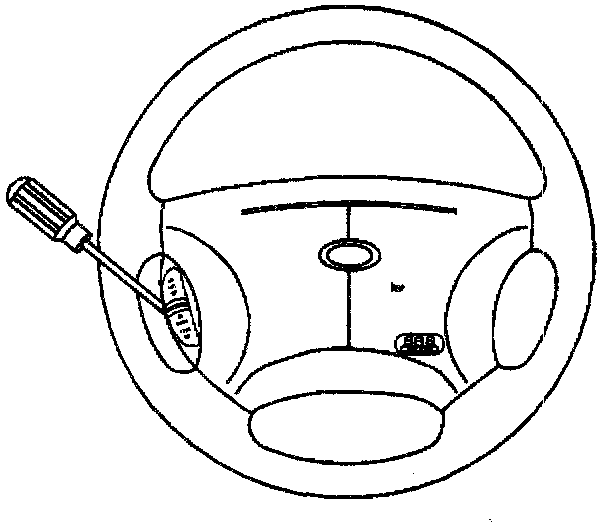

1. Using a small flat-bladed tool, carefully release the steering wheel control switches from the steering wheel.

Steering Wheel Control Switches Replacement: Removal Procedure:

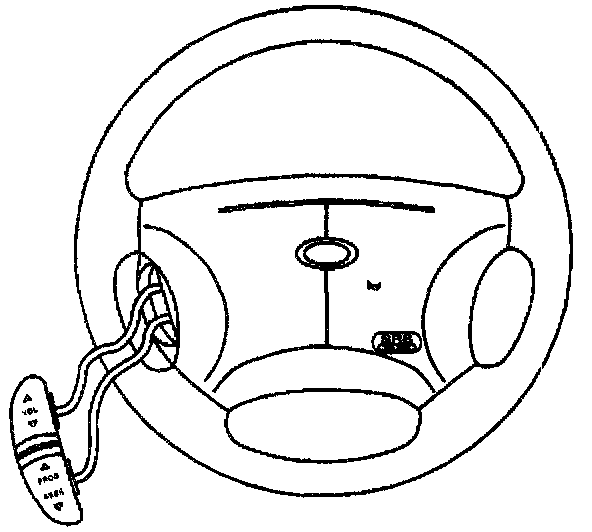

2. Disconnect the electrical connectors from the control switches.

INSTALLATION PROCEDURE

Steering Wheel Control Switches Replacement: Installation Procedure:




1. Connect the electrical connectors to the steering wheel control switches.
2. Align and carefully press to secure the control switches to the steering wheel.
