Strut, Front - Revised, and Spring Replace/Disassemble

File In Section: 3 - Steering/Suspension

Bulletin No.: 83-33-02A

Date: August, 1998

SERVICE MANUAL UPDATE

Subject:
Section 3C - Revised Front Strut Component and Spring Replacement/Disassemble Procedure

Models:
1997-98 Buick Century, Regal
1997-98 Chevrolet Venture
1997 Oldsmobile Cutlass Supreme
1997-98 Oldsmobile Silhouette
1998 Oldsmobile Intrigue
1997-98 Pontiac Grand Prix, Trans Sport

This bulletin is being revised to change model/year information. Please discard Corporate Bulletin Number 83-33-02 (Section 3 Steering/Suspension)

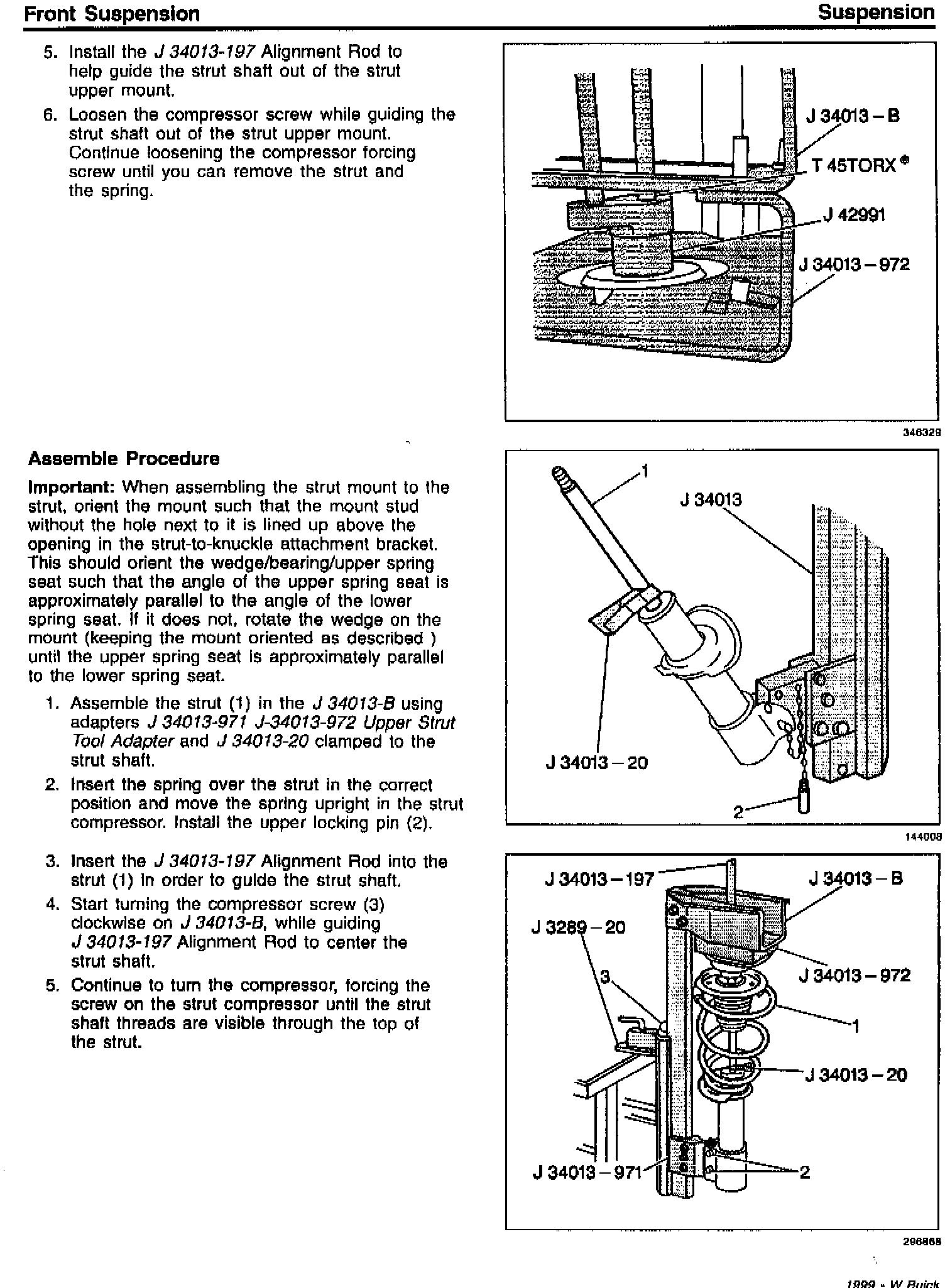

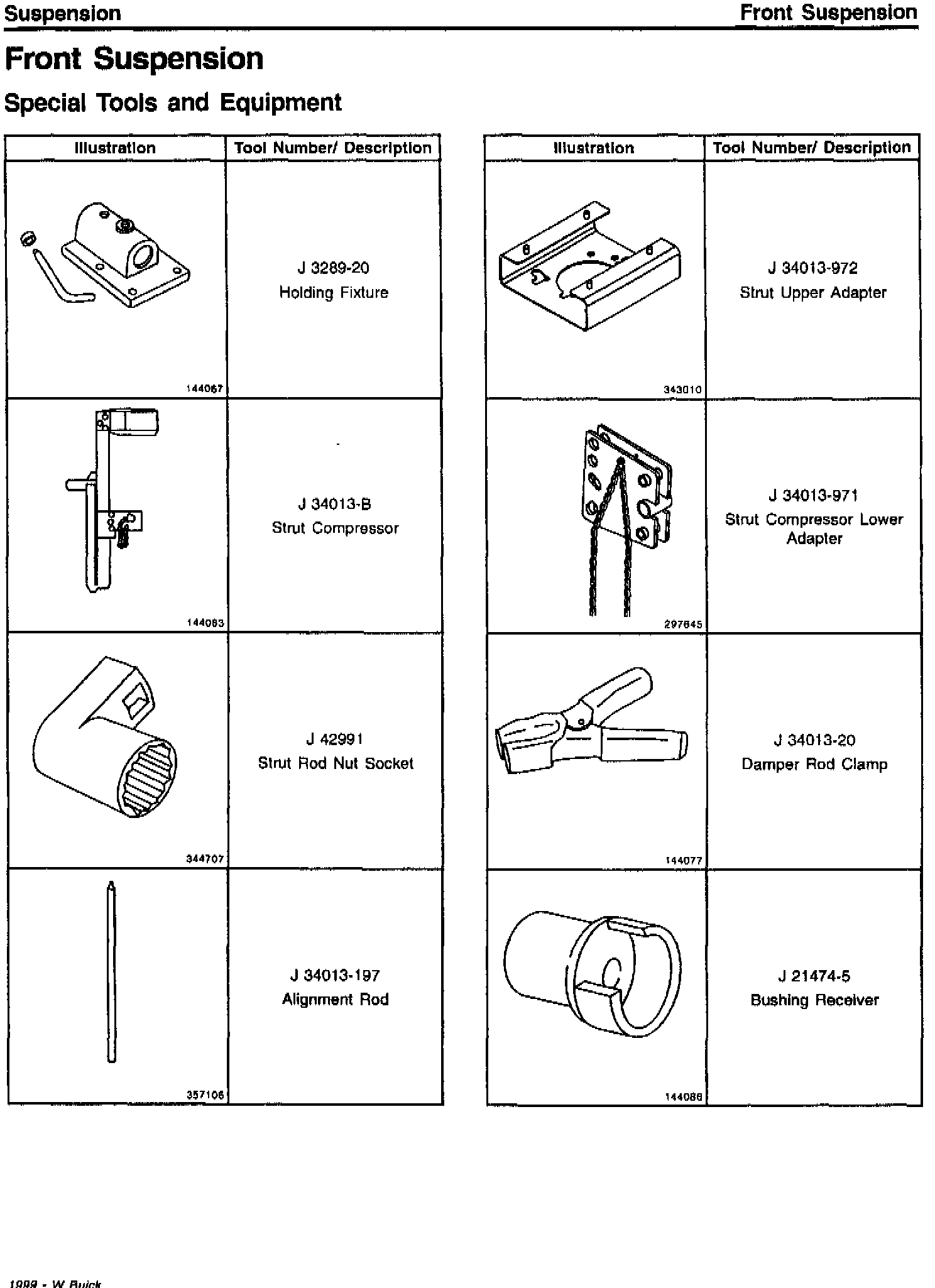

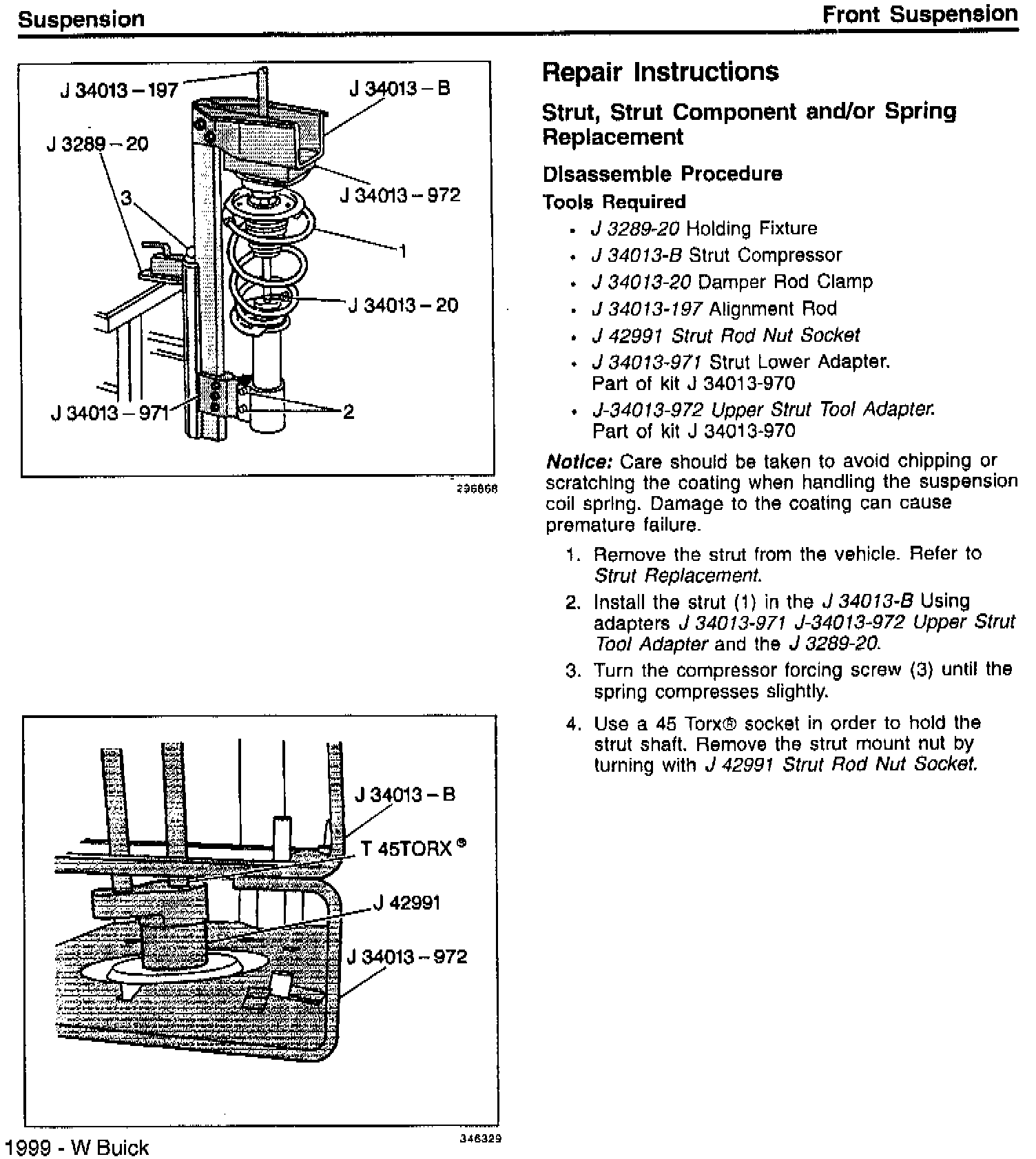

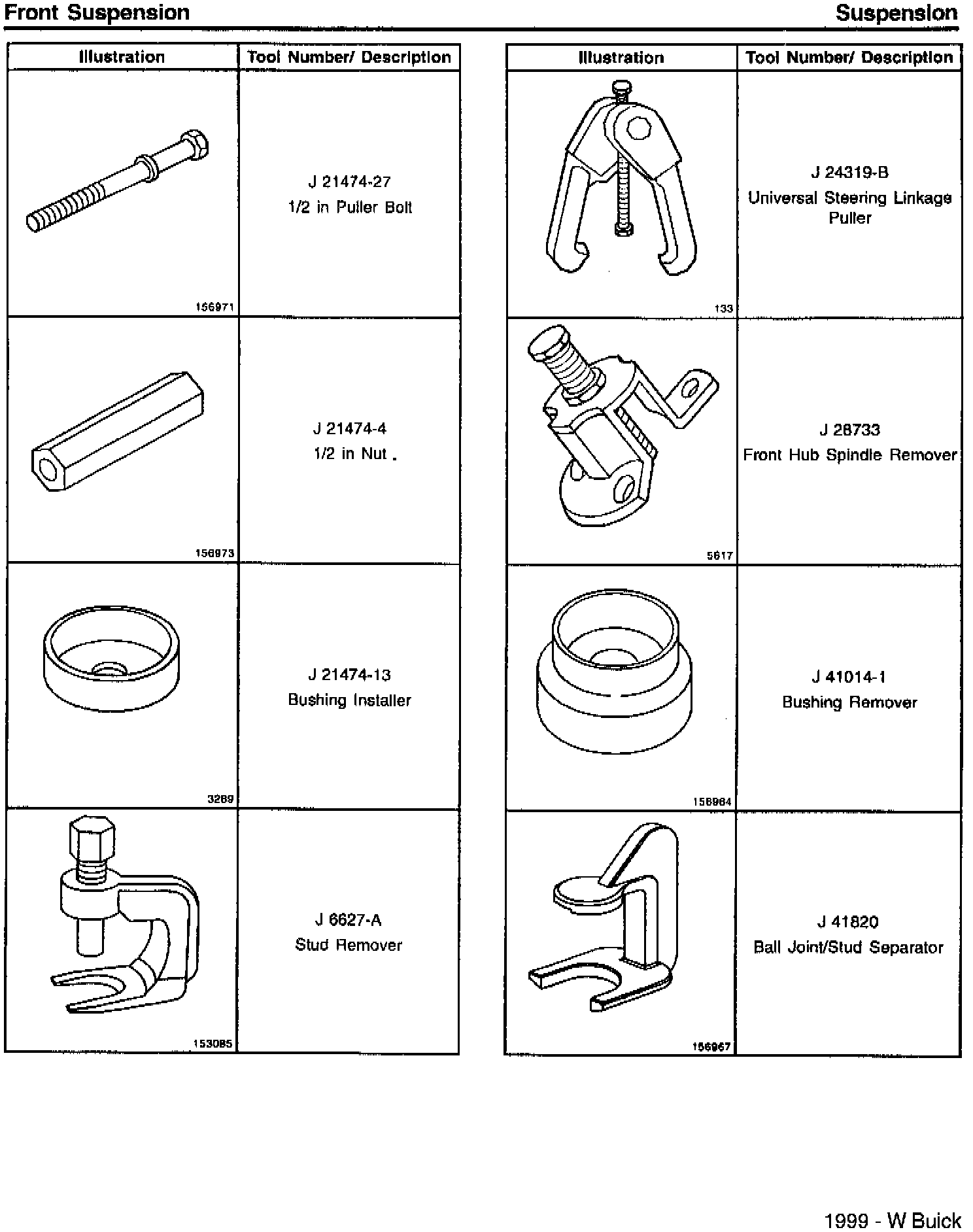

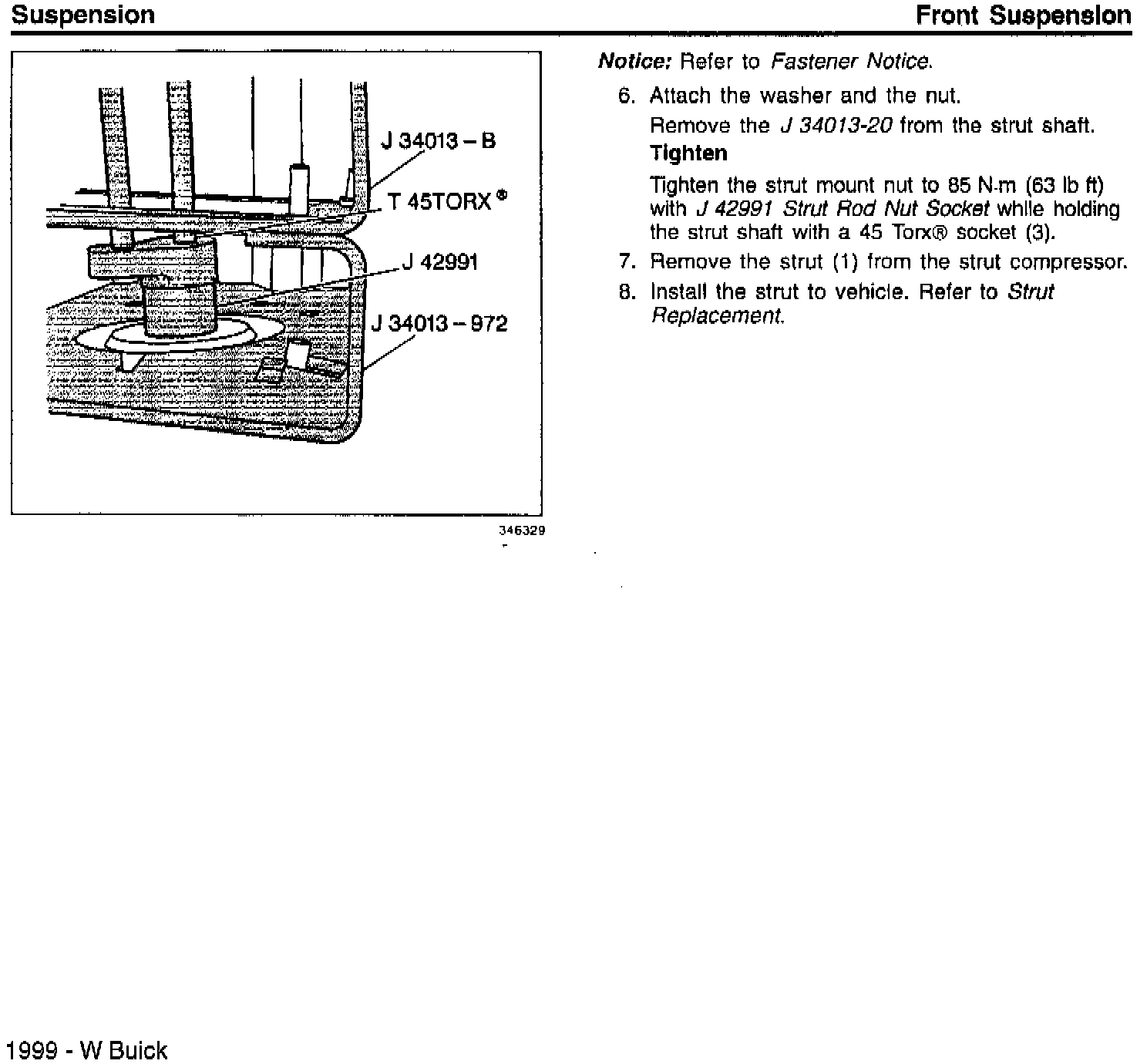

This bulletin is being issued to revise the front strut component and spring replacement/disassemble procedure in Section 30 of the Service Manual, incorporating updated essential tools.




=/ON:







�ON:








Please use these pages to replace the existing pages in the Service Manual.
