Console Front

REMOVAL PROCEDURE

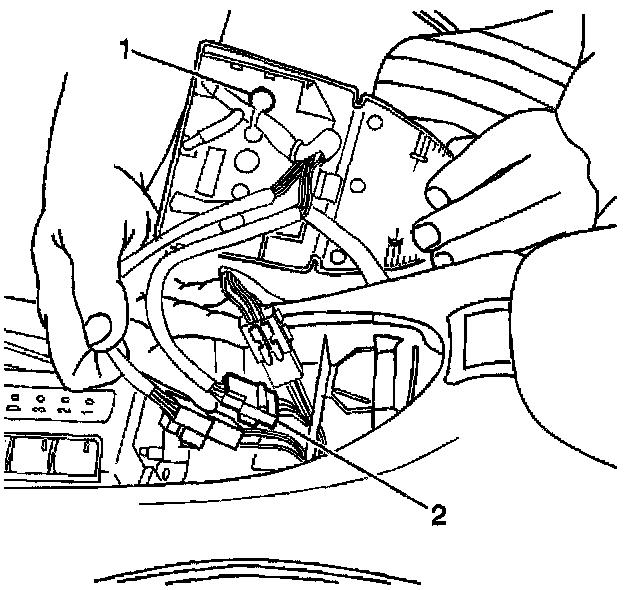

1. Carefully pry up the console seat switches/cover plate (1).
2. Partially remove the cover plate.

3. Disconnect the electrical connectors it necessary.
4. Remove the cover plate (1).

INSTALLATION PROCEDURE

1. Install the console cover plate (1) to the vehicle.
2. Connect the electrical connectors if necessary.
3. Align the cover plate (1) to the center trim plate.
4. Press downward to fasten to the center trim plate (1).
