Engine Front Cover Removal
1.
Remove the crankshaft position sensor shield.
2.
Remove the crankshaft position sensor studs.
3.
Remove the crankshaft position sensor.
4.
Remove the bolts connecting the
oil pan to the
engine front cover.
5.
Remove the
engine front cover bolts and stud.
6.

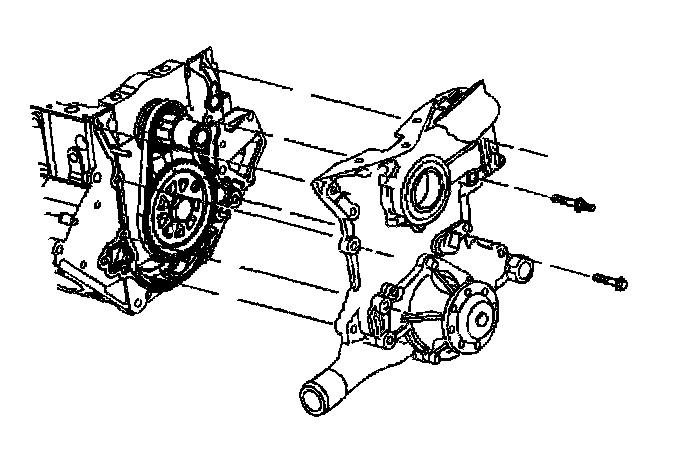

Remove the
engine front cover.
7.
Remove the
engine front cover gasket.
