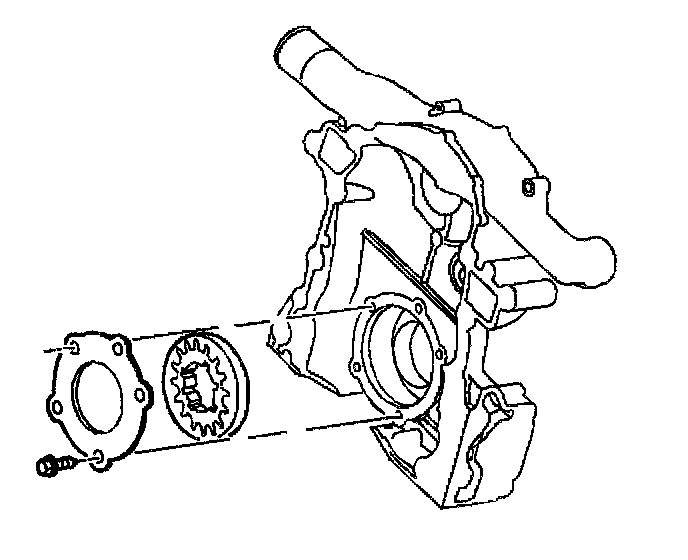

Oil Pump Cover and Gear Set Installation
1.
Lubricate the oil pump gears with petroleum jelly.
2.
Install the oil pump gears.
3.
Pack the oil pump cavity with petroleum jelly.
4.
Install the
oil pump cover,
5.
Install the
oil pump cover screws.
^
Tighten the screws to
11 Nm (98 inch lbs.).
NOTICE: Refer to Fastener Notice in Service Precautions.
