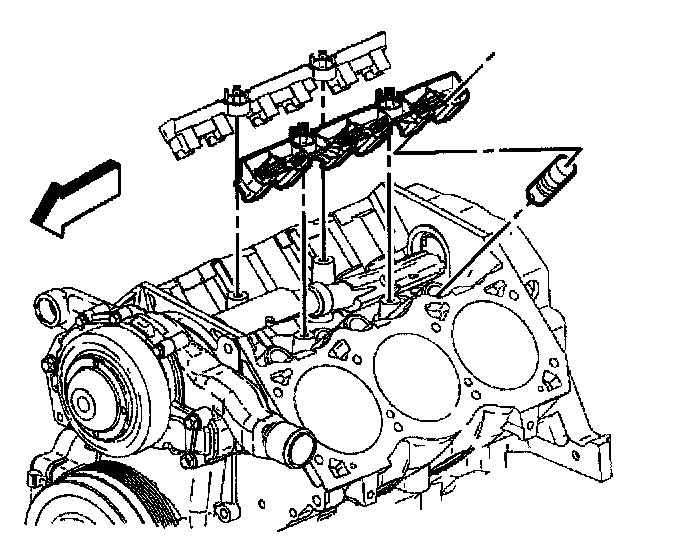

Valve Lifter Installation
1.
Dip the valve lifters in prelube GM P/N 12345501 or equivalent.
2.
Install the valve lifters.
3.
Install the valve lifter guides.
4.
Install the valve lifter guide bolts.
^
Tighten the valve lifter guide bolts to
30 Nm (22 ft. lbs.).
NOTICE: Refer to Fastener Notice in Service Precautions.
