ABS Light Relay: Service and Repair





REMOVAL PROCEDURE
The internal circuit board is replaceable. The terminals and housing are part of the wiring harness.

1. Remove the instrument panel compartment.

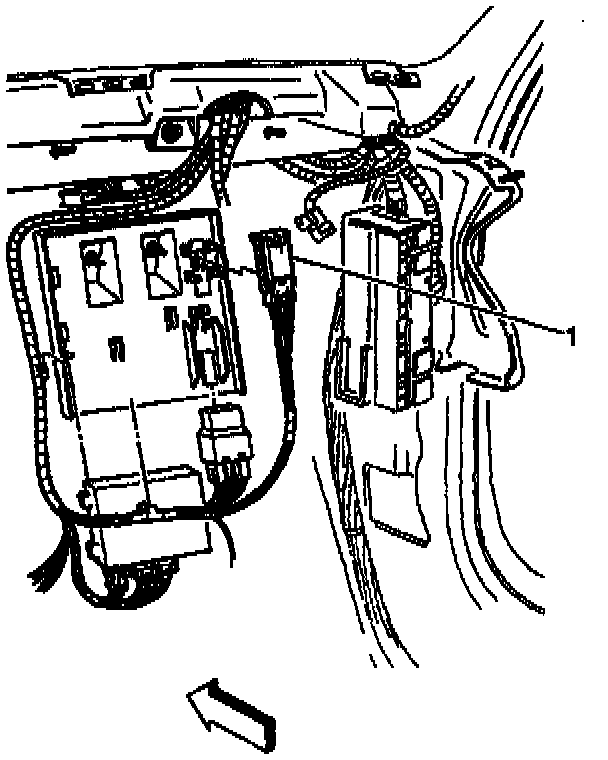

2. Unsnap the Lamp Driver Module (LDM) form mall bracket (1).
3. Open the LDM end cap and remove the circuit board by pulling straight out.





INSTALLATION PROCEDURE
1. Carefully install the circuit board into the LDM case and close the end cap (1).
2. Snap the LDM into the mall bracket clip.
3. Install the instrument panel compartment.
