- Disabling the SIR System

REMOVE OR DISCONNECT
^ Turn the steering wheel so that the vehicle's wheels are pointing straight ahead.
^ Turn ignition switch to "LOCK" and remove key.

1. "AIR BAG" fuse 1C from I/P fuse block.
2. Sound insulator - LH.
3. Connector Position Assurance (CPA) and yellow 2-way Supplemental Inflatable Restraint (SIR) harness connector located near the base of the steering column.
4. Sound insulator - RH.
5. CPA and yellow 2-way connector from passenger inflator module pigtail.

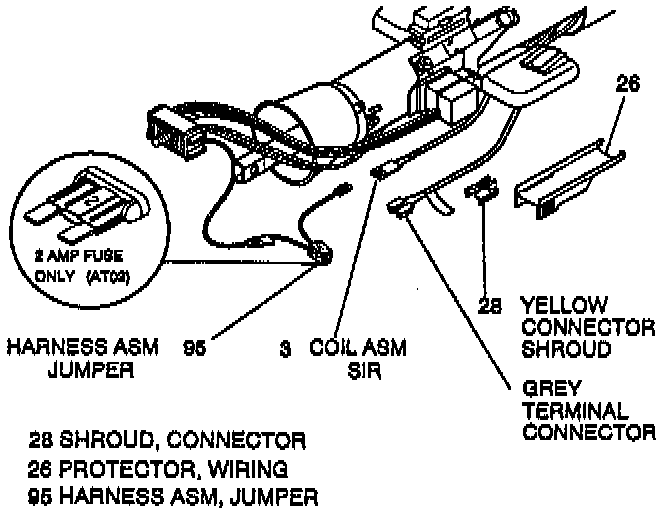

6. SIR (3) connector from harness assembly (95) connector.

NOTE: With the "AIR BAG" fuse removed and ignition switch "ON", the "AIR BAG" warning lamp will be "ON". This is normal operation and does not indicate an SIR system malfunction.
