Oil Pressure Test Plug Replacement
REMOVAL PROCEDURE 1.
Remove the air cleaner intake duct.
2.

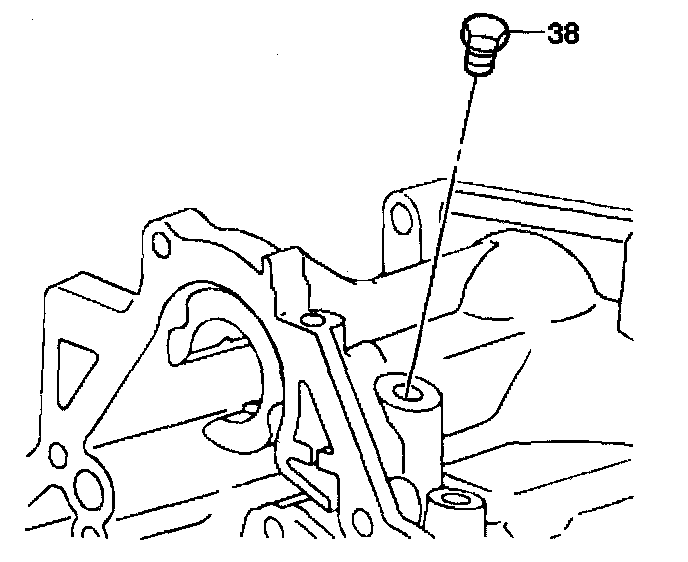

Remove the line the pressure pipe plug (38).
INSTALLATION PROCEDURE 1.

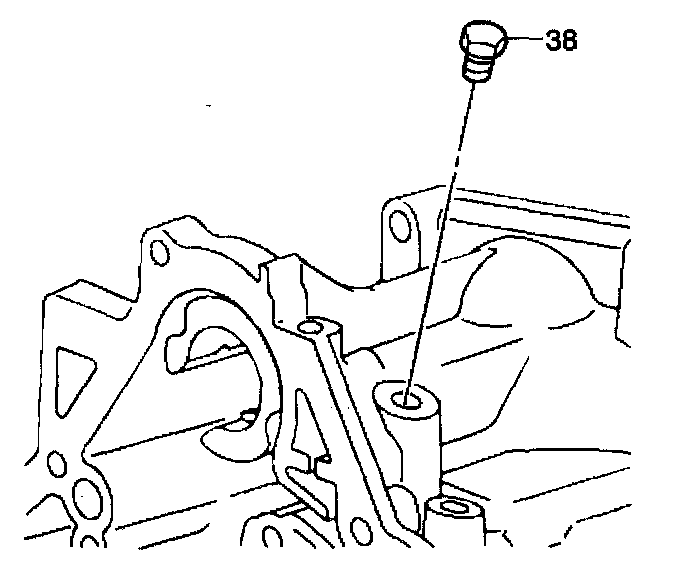

Install the line pressure pipe plug (38).
^
Tighten the line pressure pipe plug (38) to
11 Nm (97 inch lbs.).
NOTICE: Refer to Fastener Notice in Service Precautions.
2.
Install the air cleaner intake duct.
