Fluid - Differential: Service and Repair

Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the front differential carrier shield, if equipped. Refer to Shield Replacement.

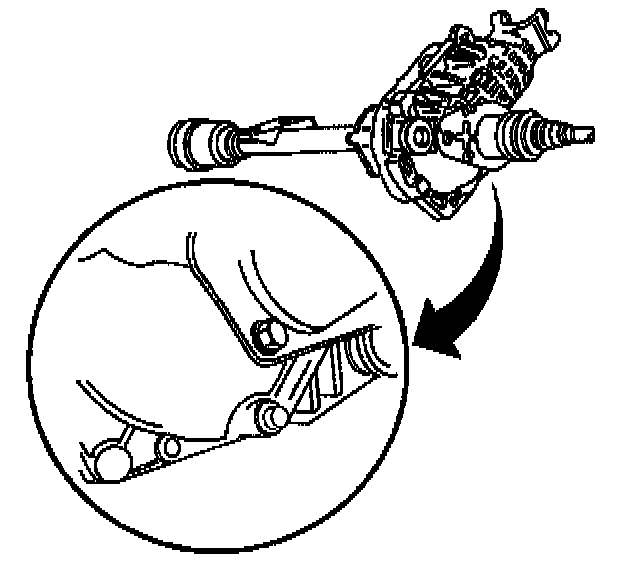

3. Remove the fill plug and the washer.

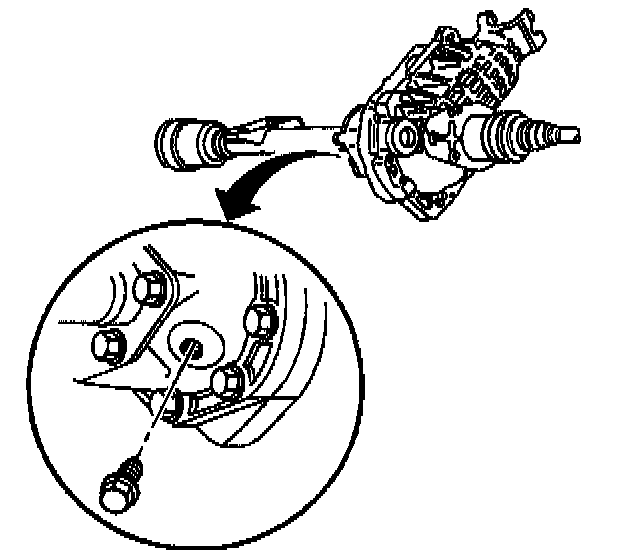

4. Remove the drain plug.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the drain plug.
^ Tighten the drain plug to 33 Nm (24 ft. lbs.).
2. Fill the differential with lubricant. Refer to Lubrication Specifications.
3. Install the washer and the fill plug.
^ Tighten the fill plug to 33 Nm (24 ft. lbs.).





4. Install the front differential carrier shield. Refer to Shield Replacement.
