Map Light Bulb: Service and Repair
REMOVAL PROCEDURE 1.
Remove the

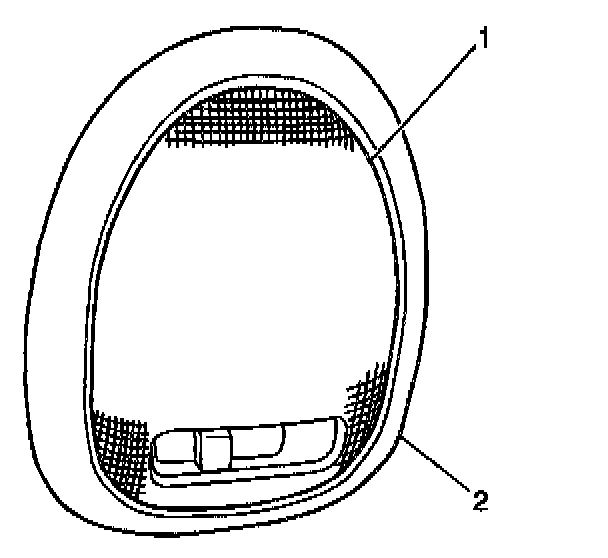

dome lamp lens (1) from the dome lamp (2) Pry off with a flat bladed tool.
2.
Remove the
dome lamp from the socket.
INSTALLATION PROCEDURE 1.
Install the
dome lamp to the socket.
2.
Install the
dome lamp lens (1) to the dome lamp (2). Ensure that the unit is retained.
