EGR Valve: Service and Repair

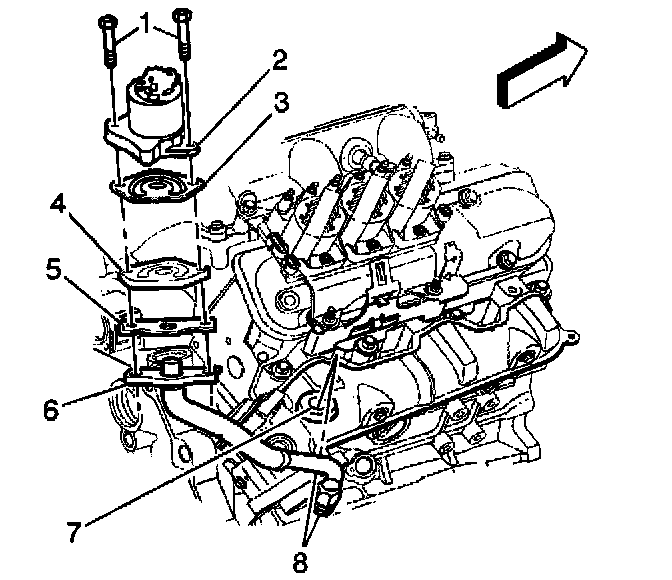

REMOVAL PROCEDURE
1. Turn OFF the ignition switch.
2. Disconnect the electrical connector at the EGR valve.
3. Remove the two base to flange nuts and remove the linear EGR valve assembly.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

1. Install the linear EGR valve assembly - two nuts.

Tighten
Tighten the nuts to 30 N.m (22 lb ft).

2. Connect the electrical connector.
