Rear Door Window Regulator: Service and Repair

REMOVAL PROCEDURE




1. Remove the door trim panel.
2. Remove enough of the door water deflector in order to access the rear side door window regulator.
3. Remove the rear side door window.
4. Disconnect the electrical connector, if equipped or remove the window regulator handle.

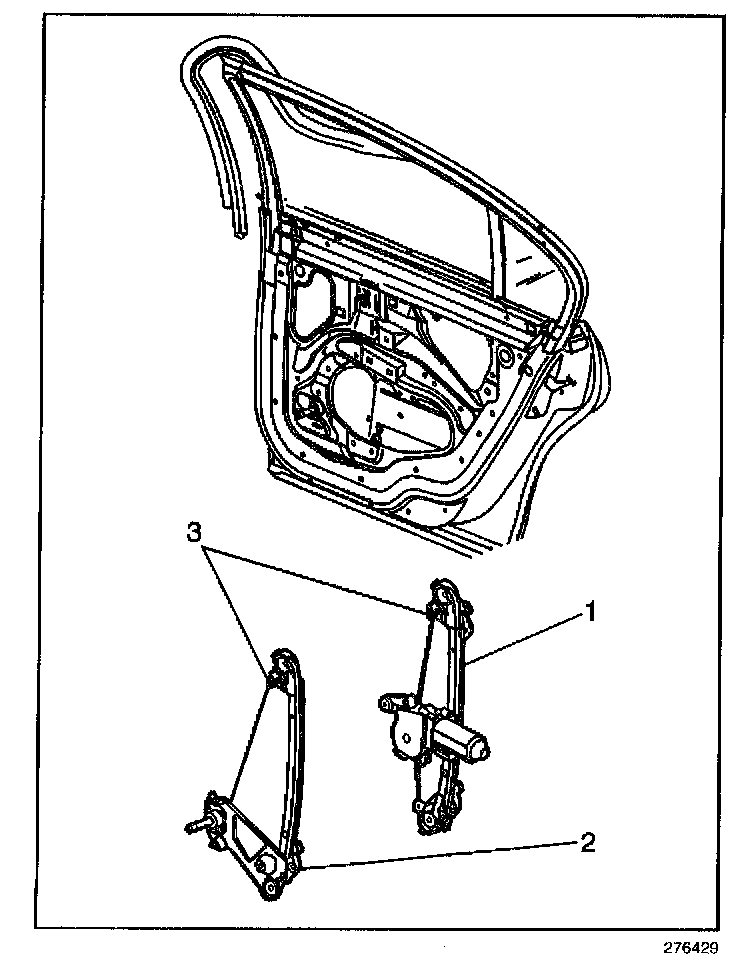

5. Remove the window regulator (3).

INSTALLATION PROCEDURE




1. Install the window regulator (3).
2. Connect the electrical connector, if equipped or install the window regulator handle.
3. Install the rear side door window.
4. Install the door water deflector.
5. Install the door trim panel.
