Coolant Level Indicator Module: Service and Repair

REMOVAL PROCEDURE





1. Disconnect the battery ground (negative) cable.
2. Partially drain the engine coolant.

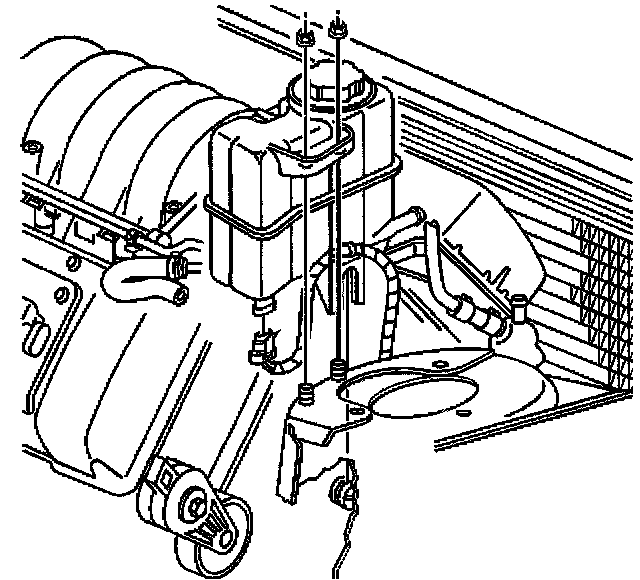

3. Remove the surge tank.
4. Disconnect the wiring harness connector from the coolant level switch.
5. Remove the coolant level switch.


INSTALLATION PROCEDURE





1. Install the coolant level switch.
2. Connect the wiring harness connector to the coolant level switch.
3. Install the surge tank.
4. Fill the surge tank with engine coolant.
5. Connect the battery ground (negative) cable.
6. Inspect the system for leaks.
