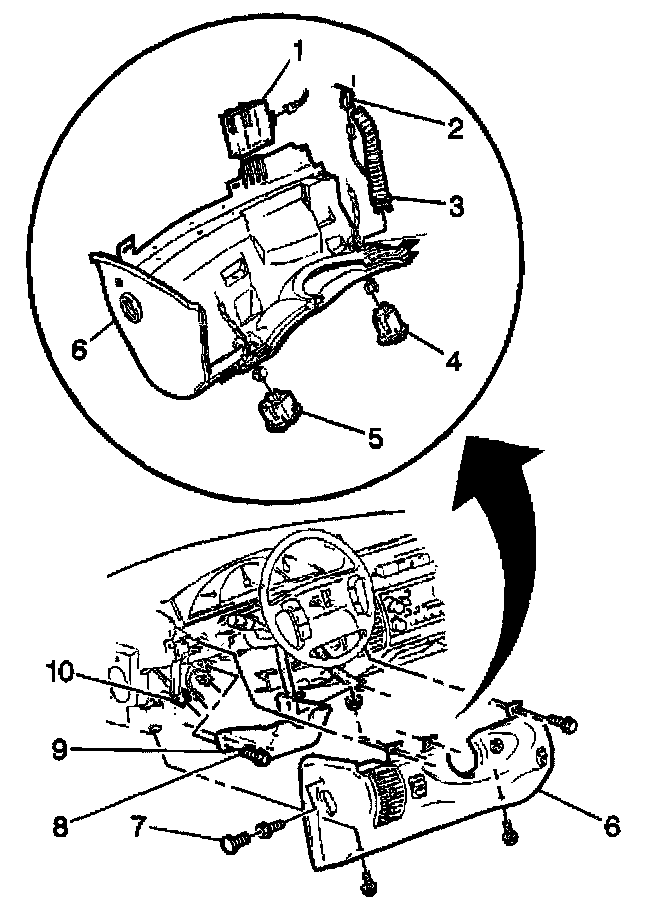

Traction Control Switch: Service and Repair
REMOVAL PROCEDURE 1.
Remove the knee bolster.
2.
Disengage the retainers fastening the
traction control switch (4).
Remove the switch.
INSTALLATION PROCEDURE 1.
Install the switch (4) to the knee bolster.
2.
Install the knee bolster.
