Wiper Motor Replacement

REMOVAL PROCEDURE




TOOLS REQUIRED
J 39232 Wiper Transmission Separator

1. Remove the wiper arm and blades.
3. Remove the air inlet grille panel.

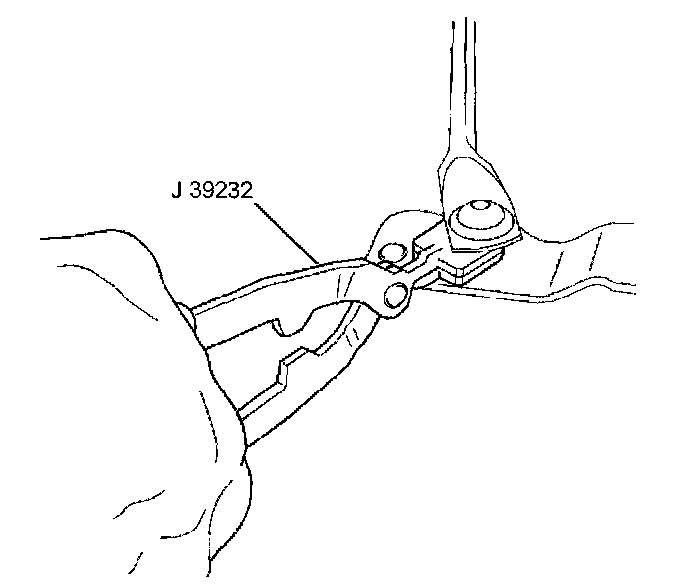

4. Remove the transmission drive link socket from the wiper motor crank arm using the J 39232 Wiper Transmission Separator.

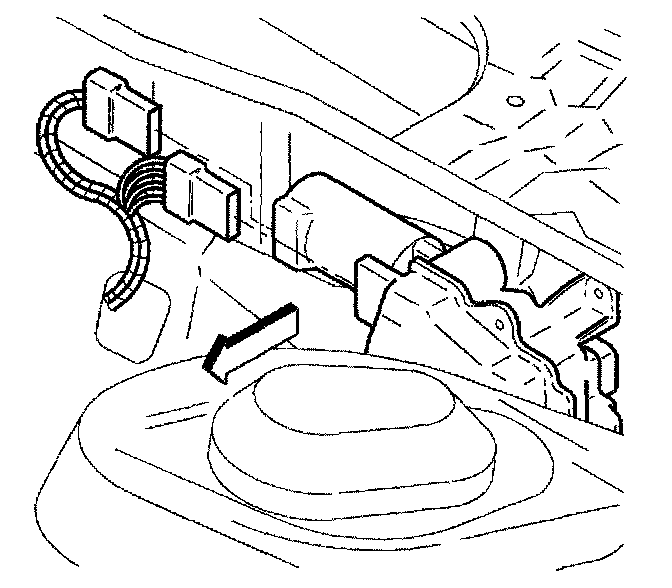

5. Disconnect the electrical connectors from the wiper motor.




6. Remove three screws.

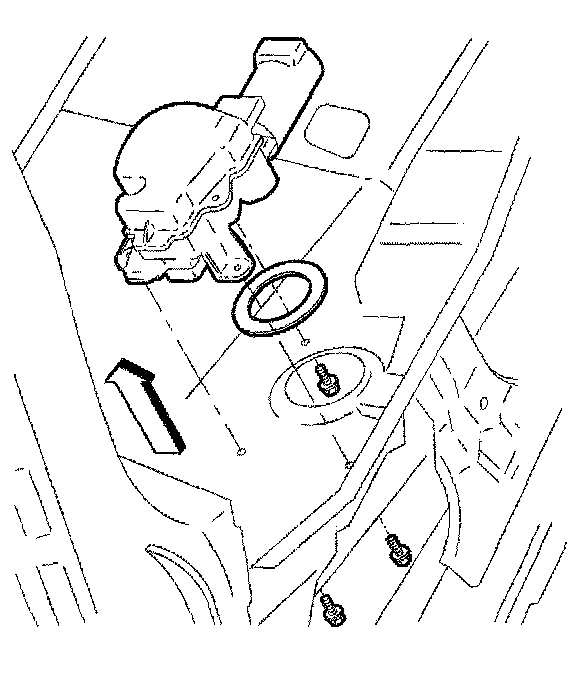

7. Remove the wiper motor and the seal while guiding the crank arm through the hole.

INSTALLATION PROCEDURE




TOOLS REQUIRED
J 39529 Wiper Transmission Installer

NOTE: Refer to Fastener Notice in Cautions and Notices.

1. Install the wiper motor and the seal while guiding the crank arm through the hole.
2. Install three screws.

Tighten
Tighten the screws to 9 N.m (80 lb in).




3. Connect the electrical connectors to the wiper motor.

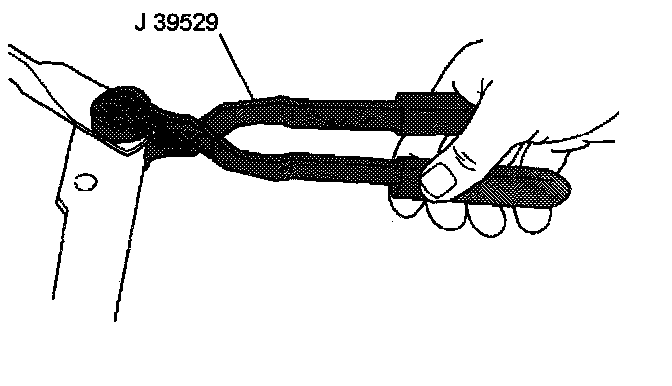

4. Install the transmission drive link socket to the wiper motor crank arm ball using the J 39529 Wiper Transmission Installer. Be sure the socket is fully seated on the ball.
5. Install the air inlet grille panel.
6. Install the wiper arms and blades.
