Power Window Switch Replacement

REMOVAL PROCEDURE

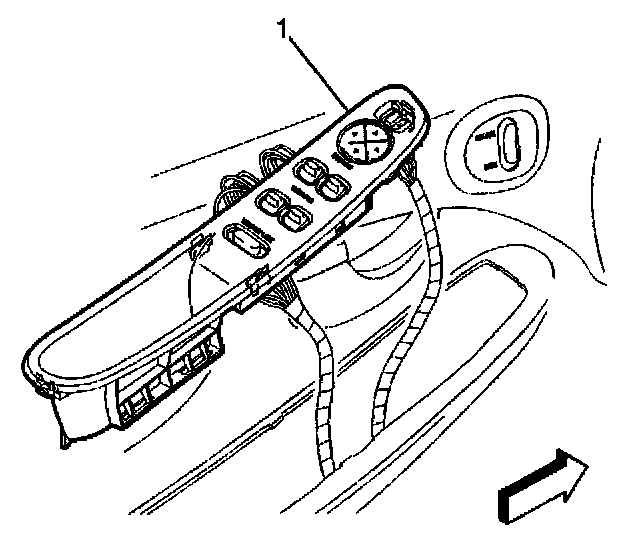

1. Use a flat-bladed tool to pry the front door switch bezel (1) upward. Apply inboard pressure to the rear bezel retaining clip.
2. Disconnect the power window switch electrical connector.
3. Release the power window switch retainers in order to remove the switch from the bezel (1).

INSTALLATION PROCEDURE




1. Install the power window switch to the bezel (1). Ensure that the retainers are locked into position.
2. Connect the electrical connector to the power window switch.
3. Install the front door switch bezel (1) to the door trim panel. Ensure that the retainers are locked into position.
