Endgate Weatherstrip Replacement



Endgate Weatherstrip Replacement

Removal Procedure

In order to remove the liftgate window weatherstrip from the pinch-weld flange, perform the following steps:




1. Open the liftgate window.
2. Firmly grip the weatherstrip.
3. Pull the weatherstrip.

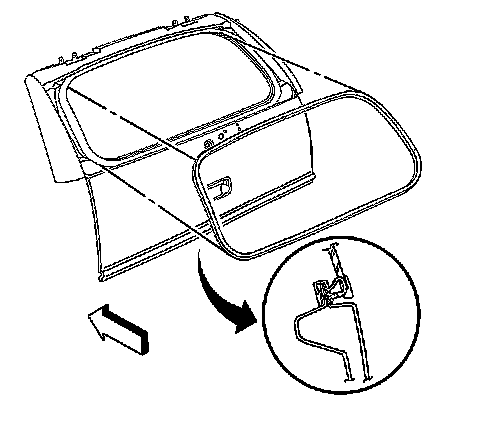

Installation Procedure

1. Open the liftgate window.




2. Push the weatherstrip onto the pinch-weld flange.
Begin with the pre-formed corner at either upper corner of the liftgate window opening.
3. Completely seat the weather-strip around the liftgate window opening.
