Windshield Washer Pump: Service and Repair

REMOVAL PROCEDURE




1. Remove the washer solvent from the solvent container.
2. Disconnect the electrical connectors from the washer pumps.
3. Disconnect the hoses from the washer pumps.

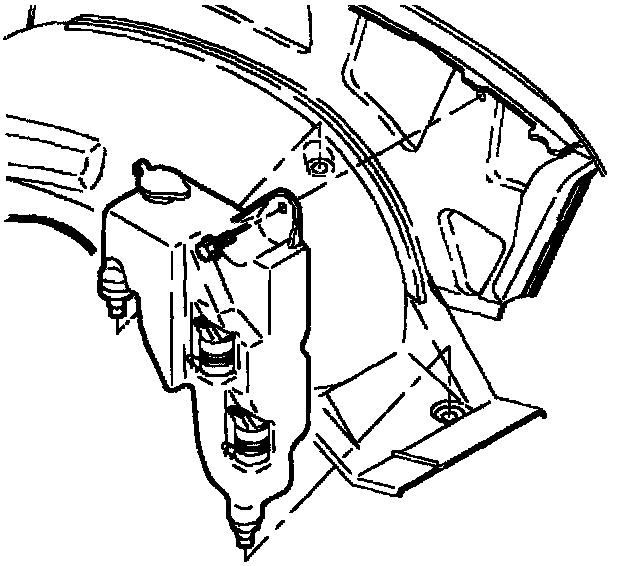

4. Remove the screw and the solvent container from the vehicle.




5. Remove the washer pumps and grommets from the solvent container.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the washer pumps and grommets onto the solvent container.




2. Install the solvent container onto the vehicle with the screw.

Tighten
Tighten the screw to 3 N.m (27 lb in).




3. Connect the hoses to the washer pumps.
4. Connect the electrical connectors to the washer pumps.
5. Refill the washer solvent in the solvent container.
