Cruise Control Servo Cable: Service and Repair

REMOVAL PROCEDURE




1. Disconnect the cruise control cable adjuster lock.
2. Rotate the cruise control cable counterclockwise. Remove the cruise control cable from the cruise control module.




3. Remove the cruise control cable from the retainer on the cruise control module bracket.




4. Remove the cruise control cable from the throttle body bracket.

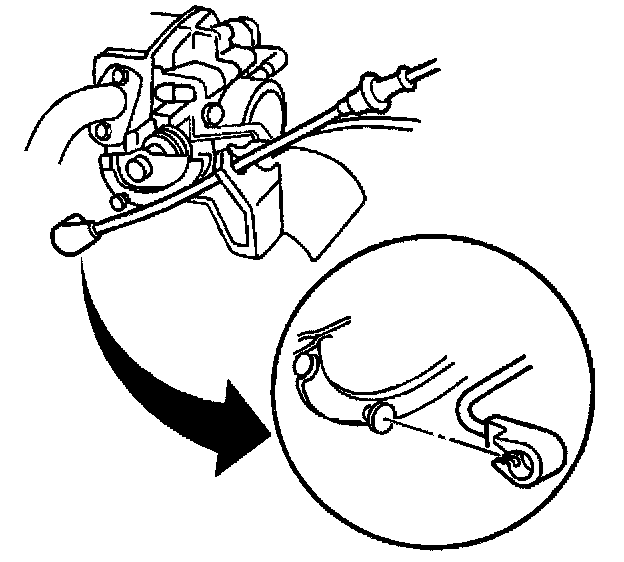

5. Remove the cruise control cable from the cam pin.
6. Remove the cruise control cable from the vehicle.

INSTALLATION PROCEDURE




1. Install the cruise control cable to the vehicle.
2. Install the cruise control cable to the cruise control cable throttle bracket.
3. Install the cruise control cable to the cam pin.




4. Install the cruise control cable to the retainer on the cruise control module bracket.




5. Install the cruise control cable to the cruise control module.
6. Connect the cruise control cable adjuster lock. Rotate the cruise control cable clockwise.
7. Adjust the cruise control cable. Refer to Cruise Control Cable Adjustment.
