EGR Inlet Pipe

REMOVAL PROCEDURE

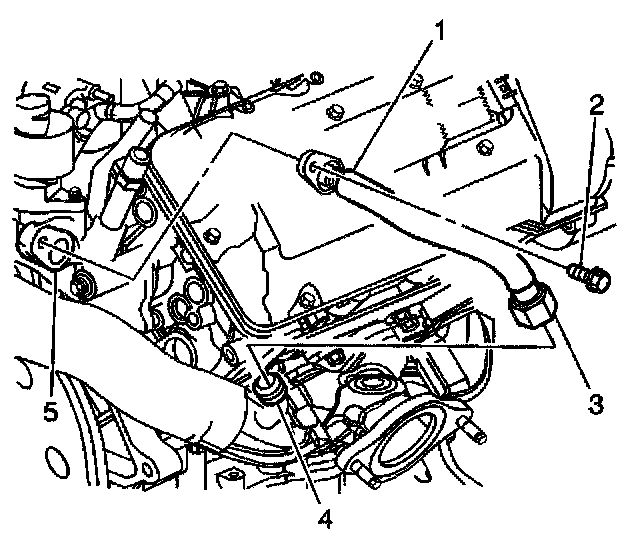

1. Remove the mounting bolt (2) that attaches the EGR inlet pipe flange to the coolant crossover assembly (5).
2. Remove the nut that attaches the EGR inlet pipe flare to the rear exhaust manifold.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

1. Hand tighten the flange mounting bolt (2) to the coolant crossover assembly (4).
2. Attach the EGR inlet pipe nut (3) to the rear exhaust manifold (4).

Tighten
^ Tighten the nut to 60 N.m (44 lb ft).
^ Tighten the mounting bolt to 24 N.m (18 lb ft).
