Cruise Control Switch: Service and Repair

CRUISE CONTROL STEERING WHEEL SWITCH REPLACEMENT

REMOVAL PROCEDURE




1. Disable the SIR system.
2. Remove the inflatable restraint steering wheel module.

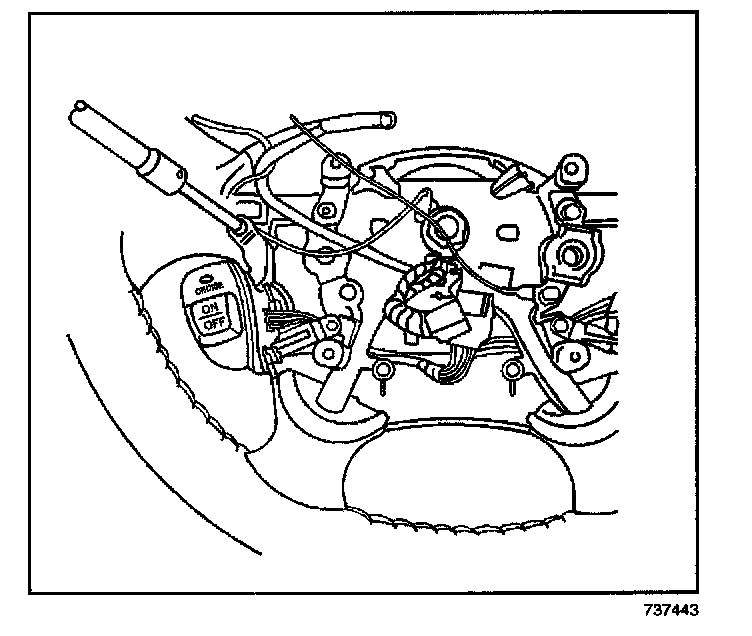

3. Remove the screws from the steering wheel control switch.

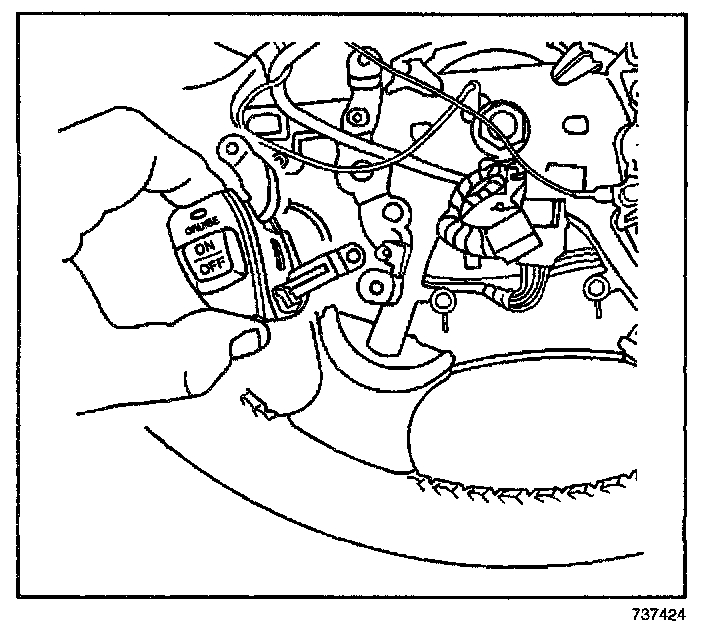

4. Remove the steering wheel control switch from the steering wheel.

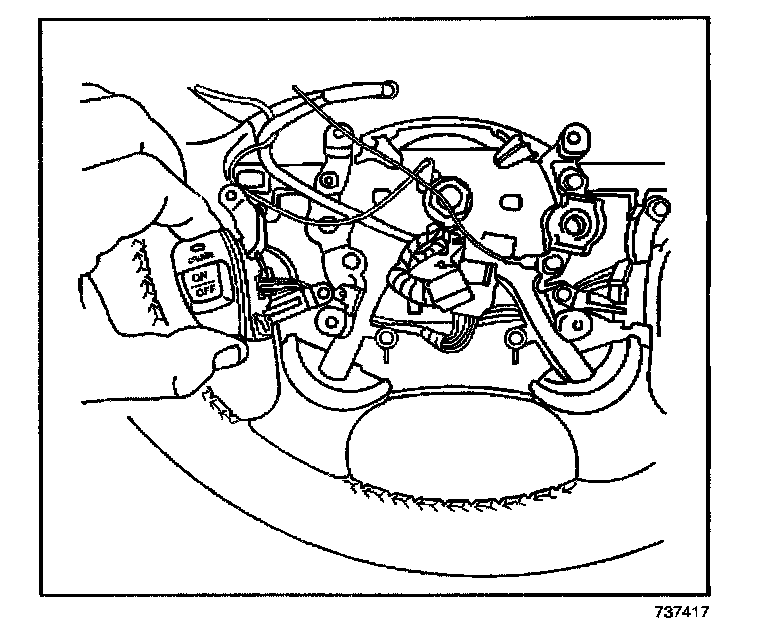

5. Disconnect the electrical connector from the steering wheel control switch.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the steering wheel control switch.




2. Position the steering wheel control switch to the steering wheel.

NOTE: Refer to Fastener Notice in Service Precautions




3. Install the screws to the steering wheel control switch.

Tighten
Tighten the steering wheel control switch screws to 2 N.m (19 lb in).

4. Inspect the operation of the steering wheel control switch.
5. Install the inflatable restraint steering wheel module.
6. Enable the SIR system.
