Recirculation Door Replacement

REMOVAL PROCEDURE




1. Remove the recirculation actuator.

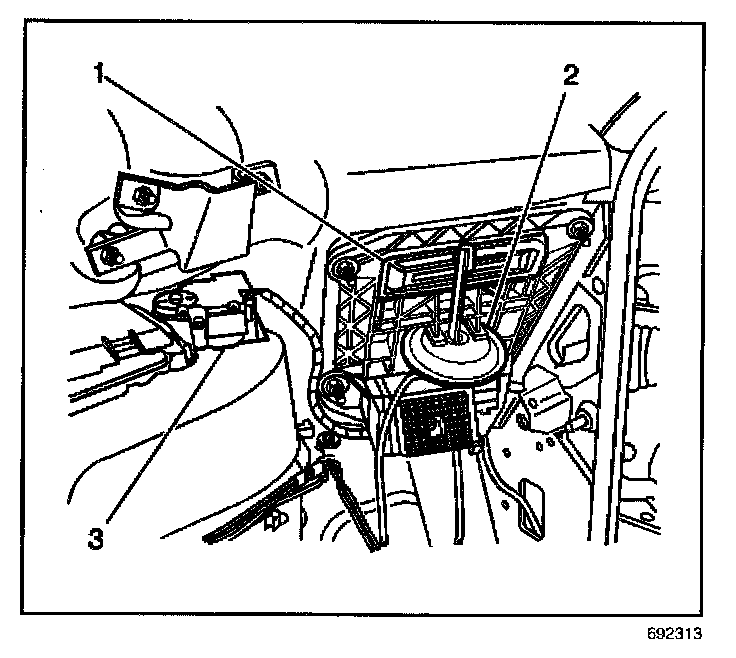

2. Remove the recirculation door (1) from the recirculation housing.

INSTALLATION PROCEDURE




1. Install the recirculation door (1) to the recirculation housing.
2. Install the recirculation actuator.
