On-Vehicle

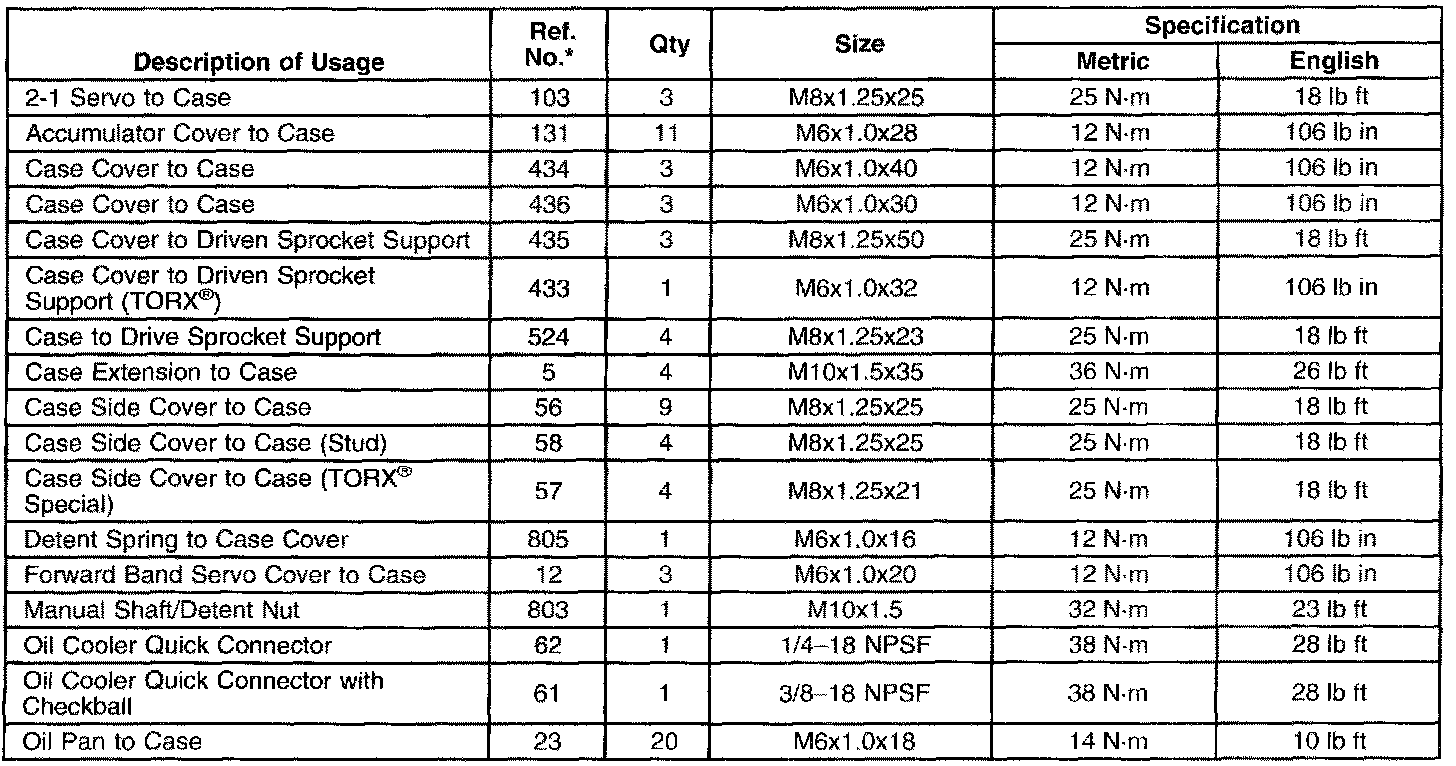

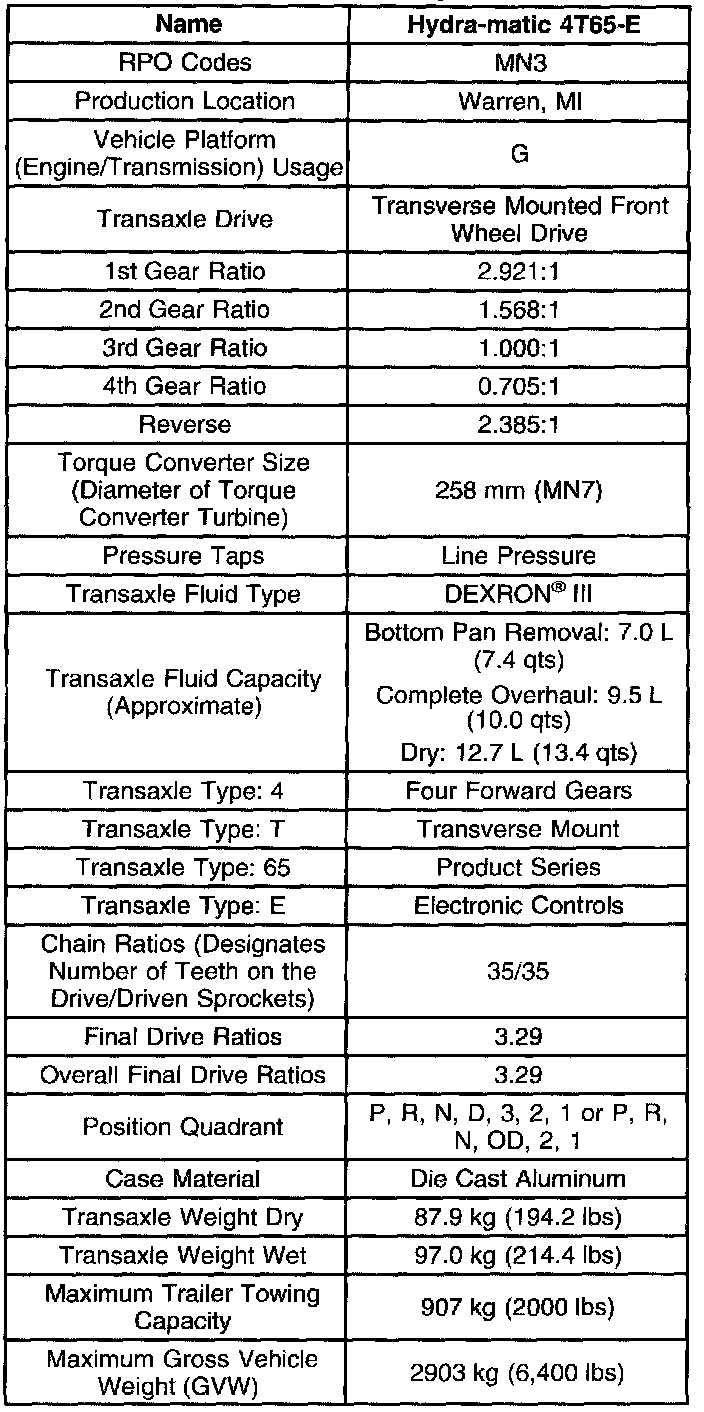

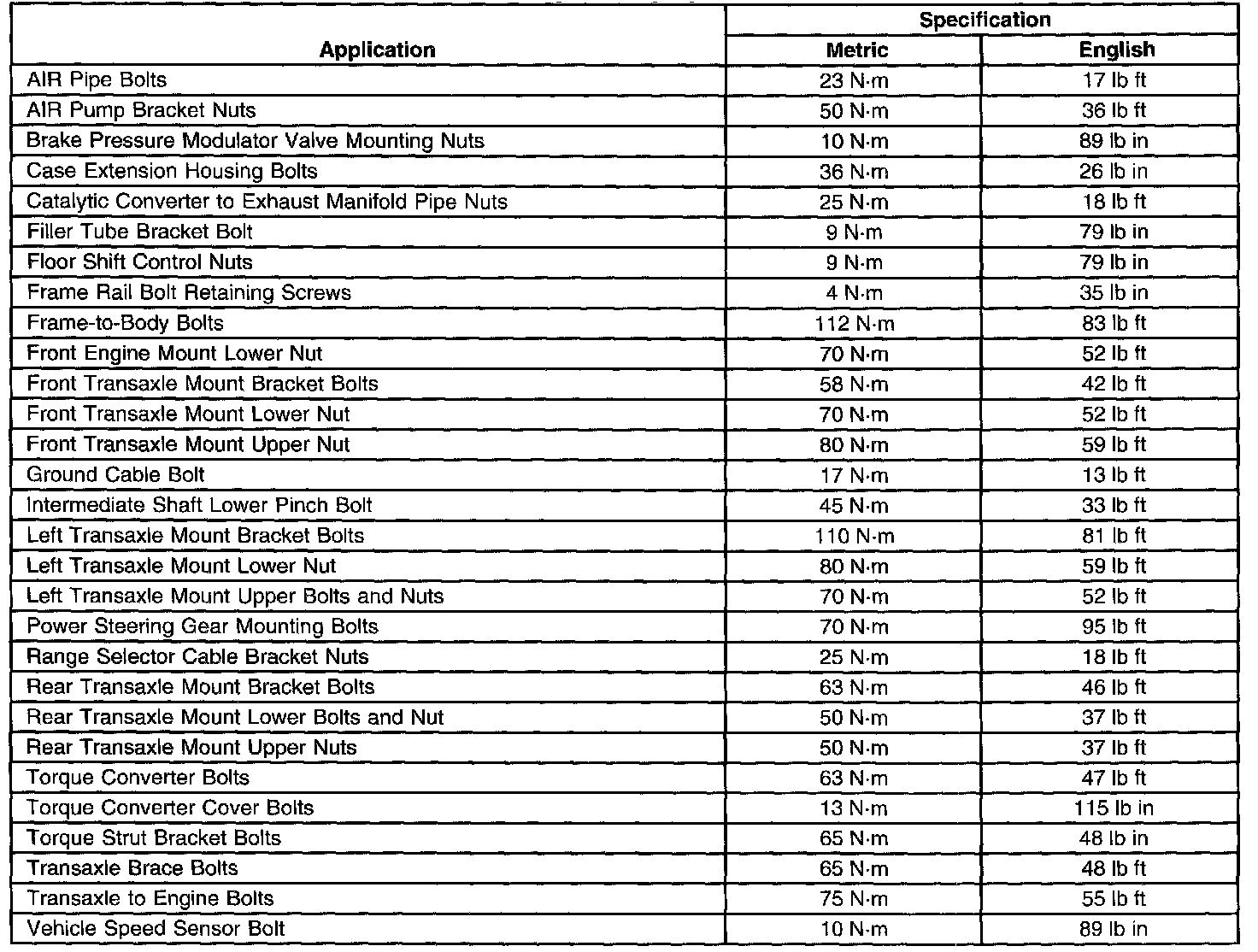

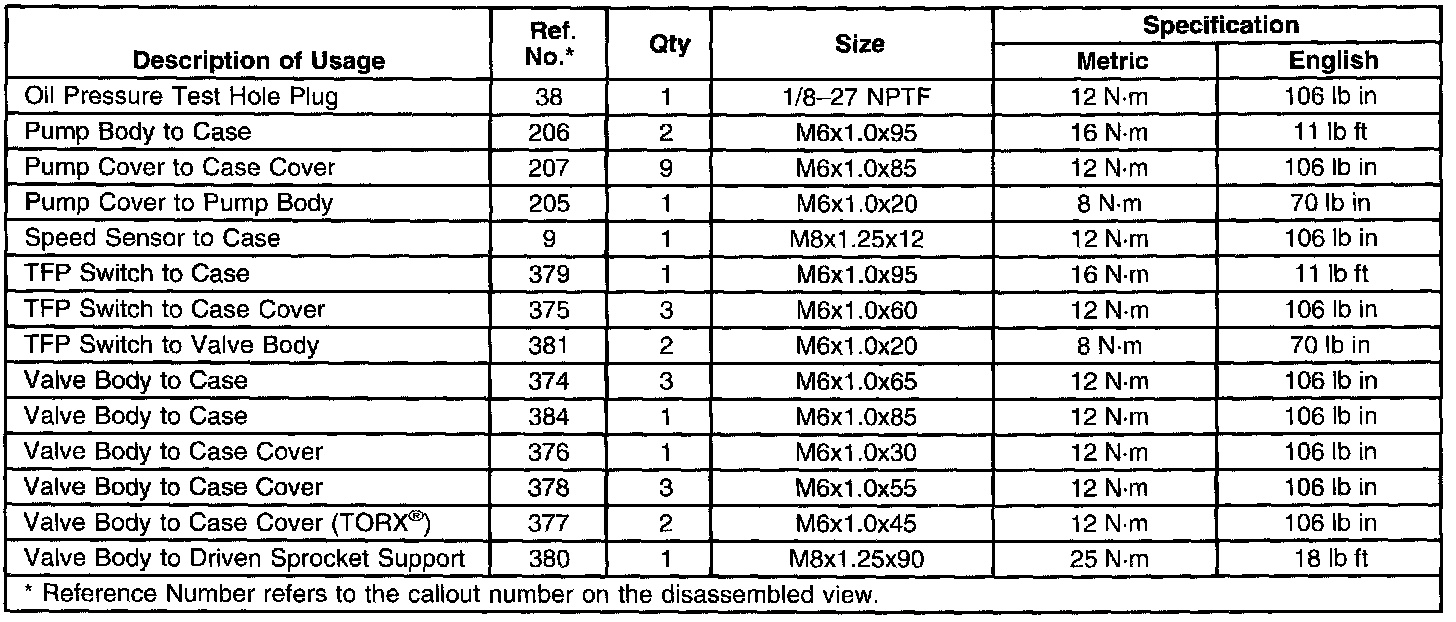

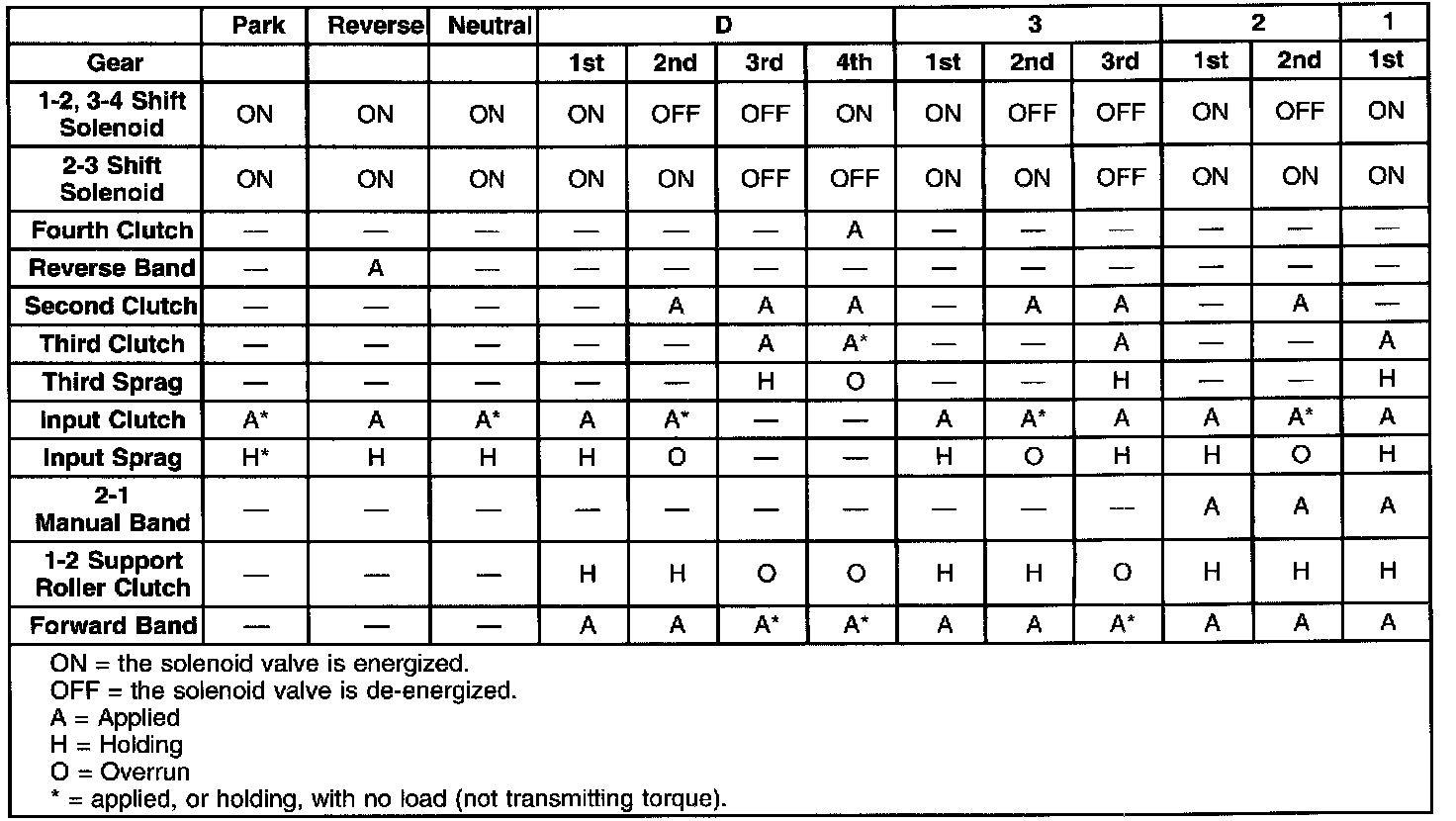

Automatic Transaxle - 4T65-E Fastener Tightening Specifications Transmission General Specifications Range Reference Shift Solenoid Valve State and Gear Ratio Shift Speed Flexplate Torque/Sequence, A/T
Service and Repair Transmission Pan Torque/Sequence, A/T
Service and Repair
