Engine

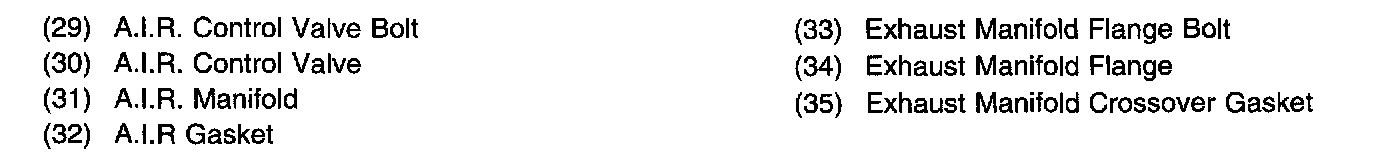

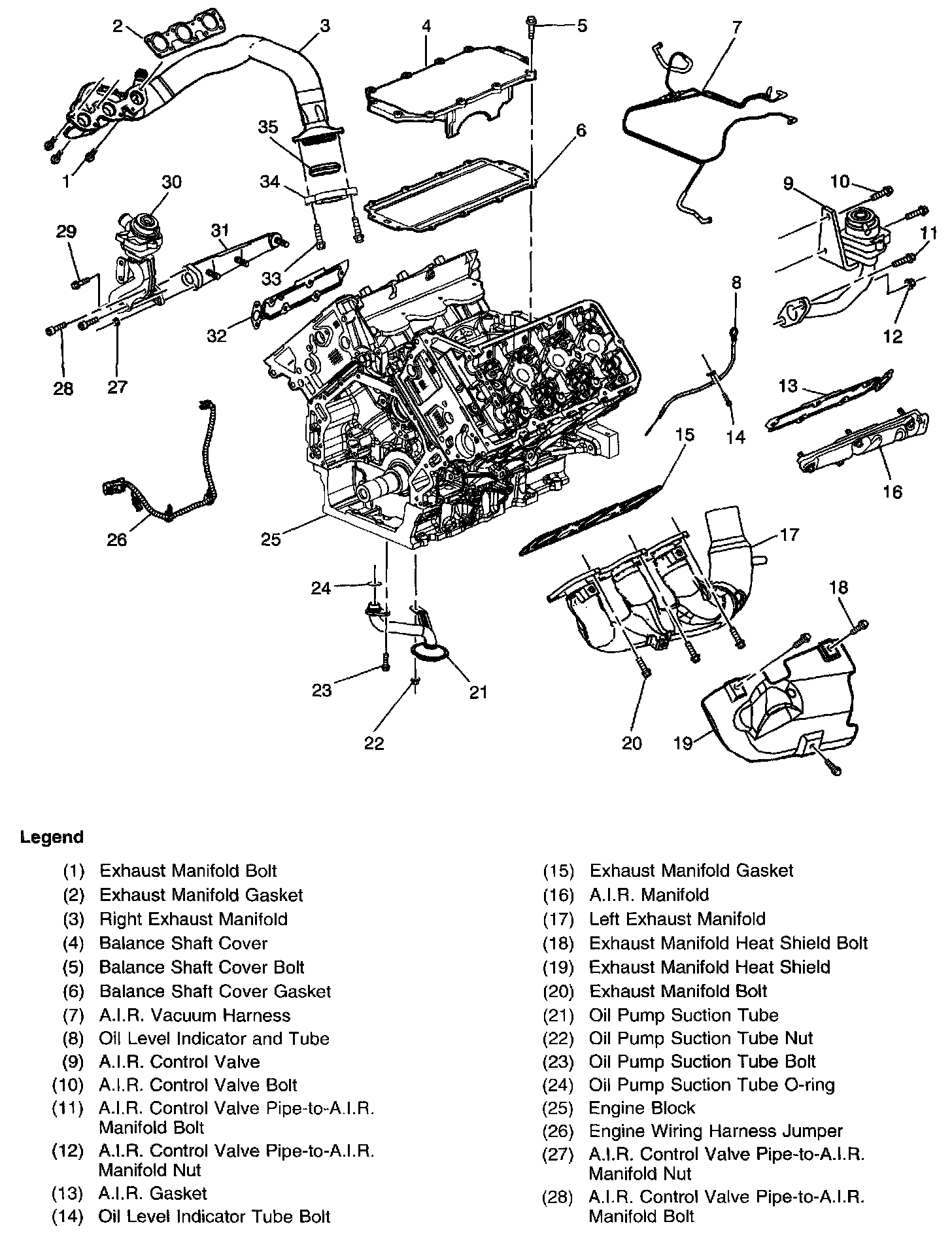

Disassembled Views





Part 1 of 2





Part 2 of 2

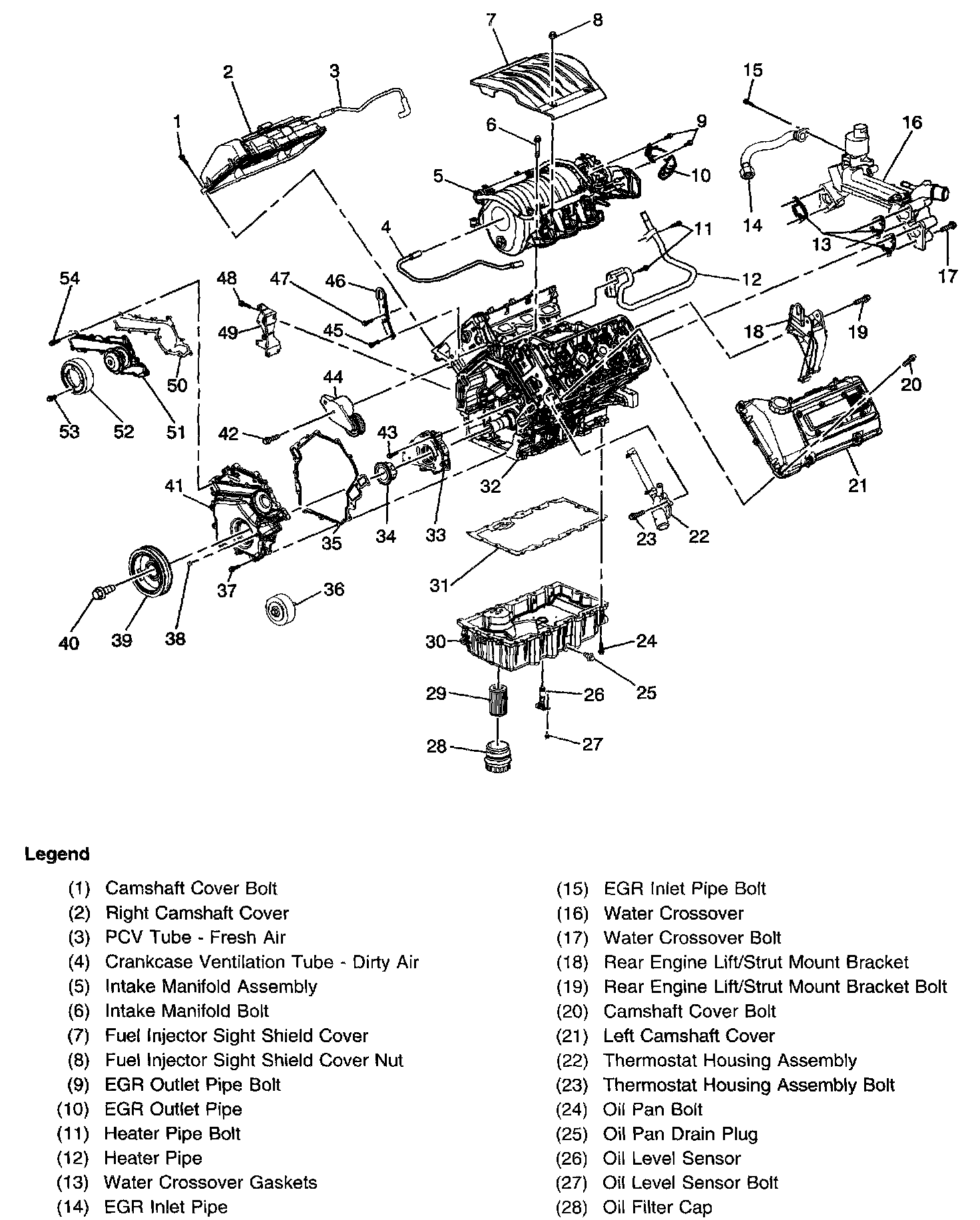

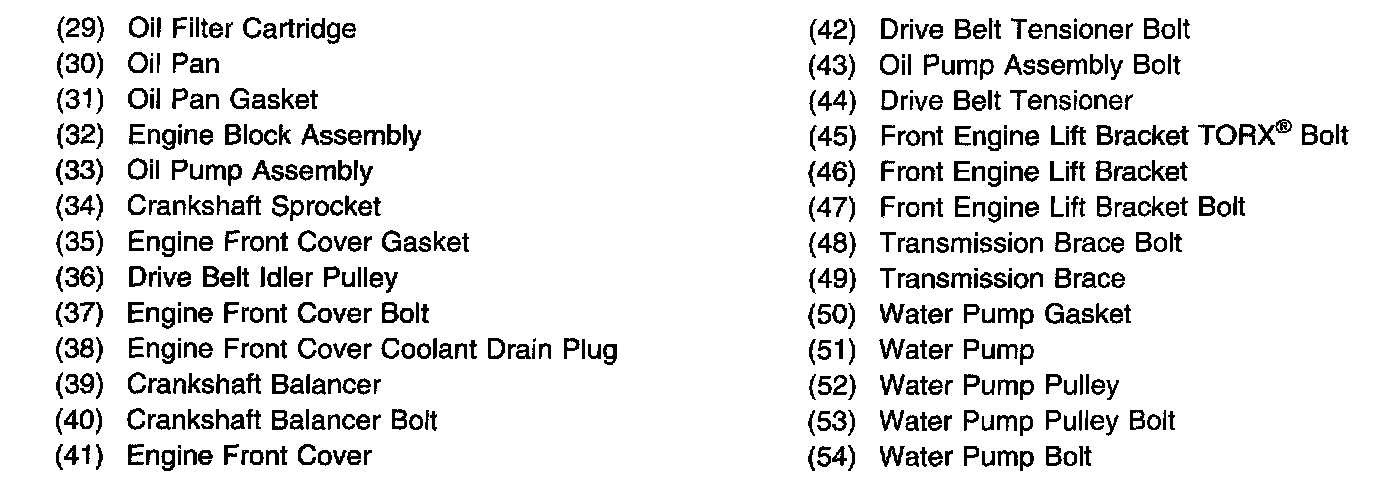

Engine Covers and Components Assemblies (1 of 2)






Part 1 of 2





Part 2 of 2

Engine Covers and Components Assemblies (2 of 2)

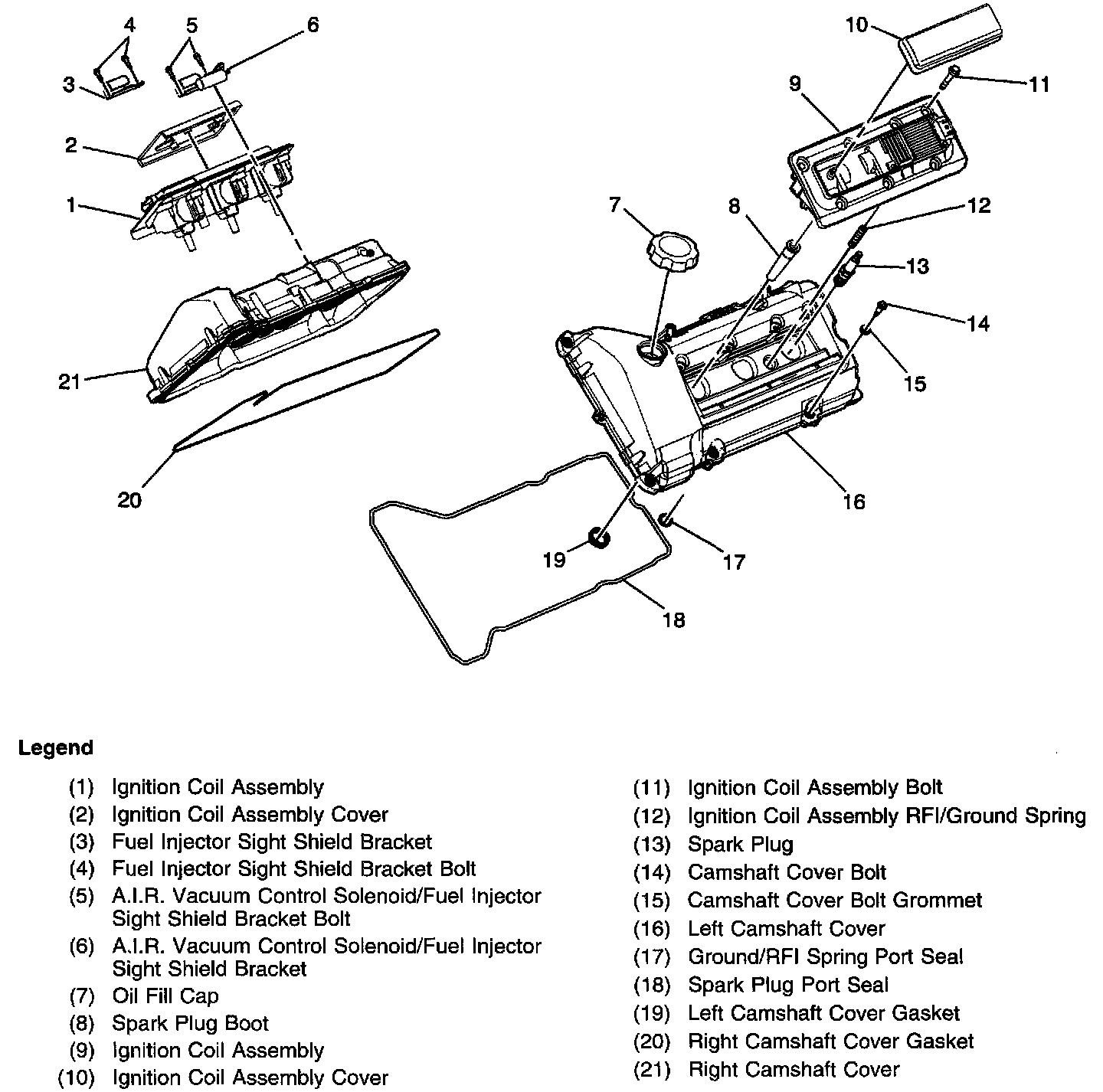

Camshaft Covers Assemblies

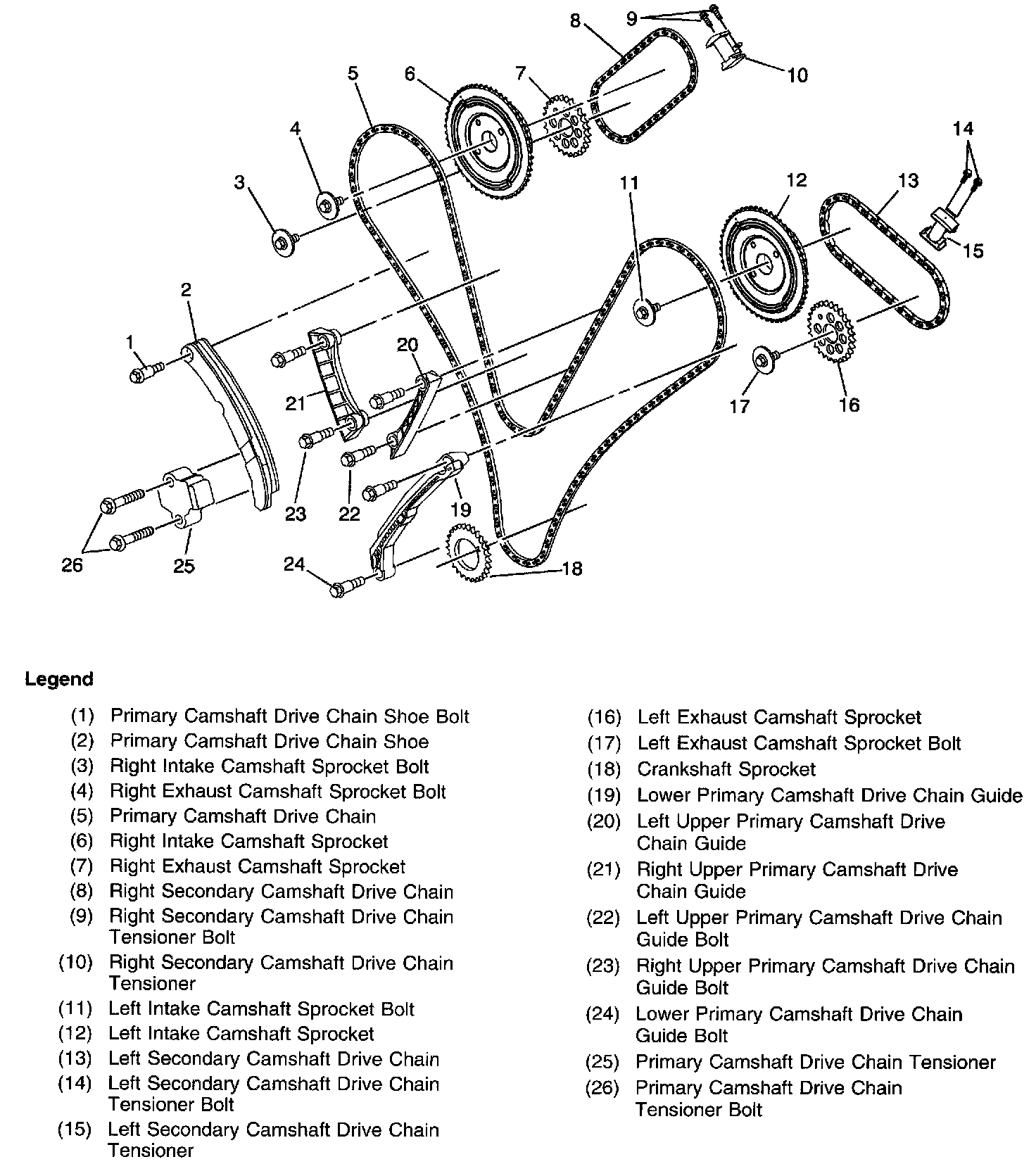

Camshaft Timing Components






Intake Manifold and Fuel Components






Part 1 of 2





Part 2 of 2

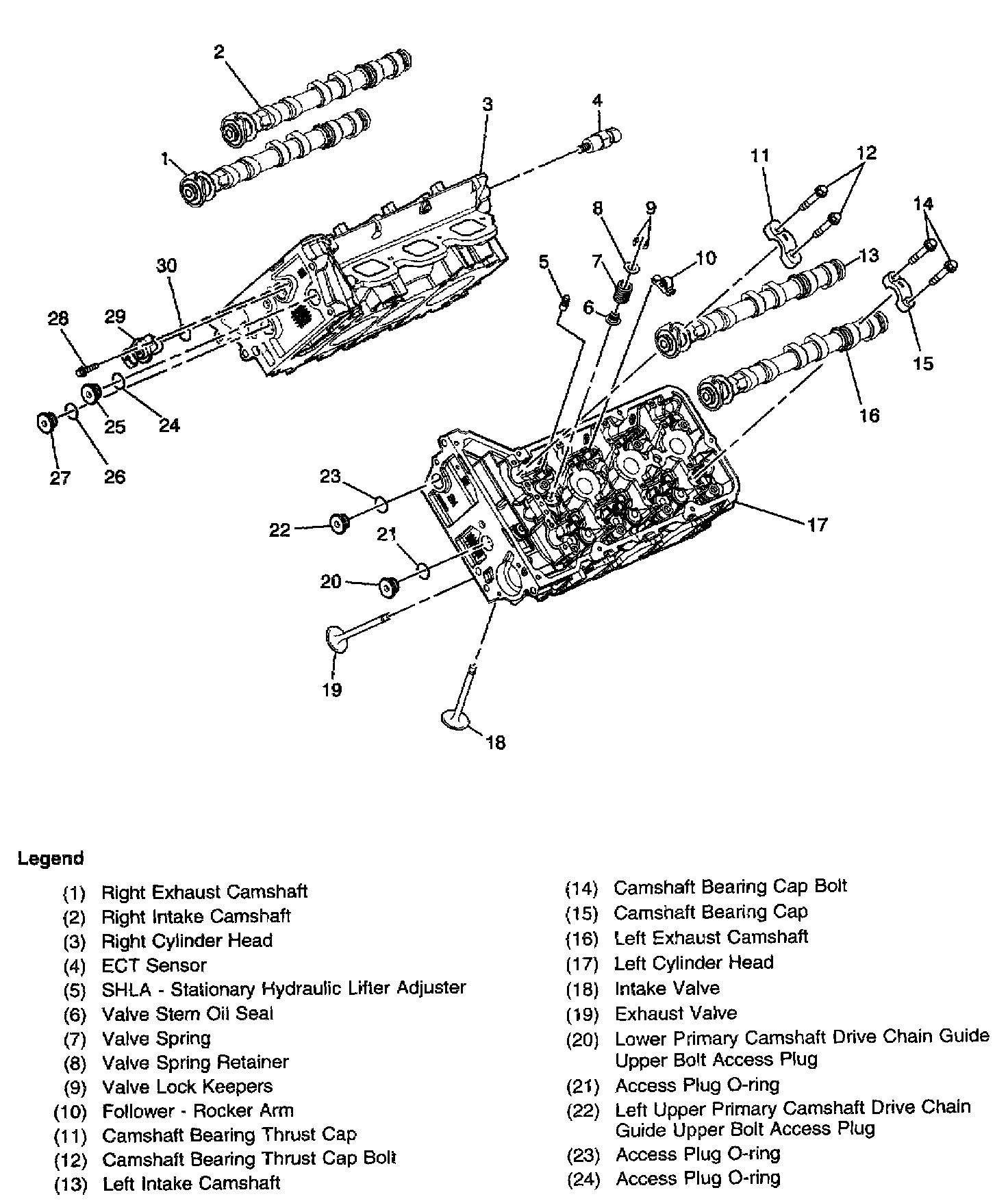

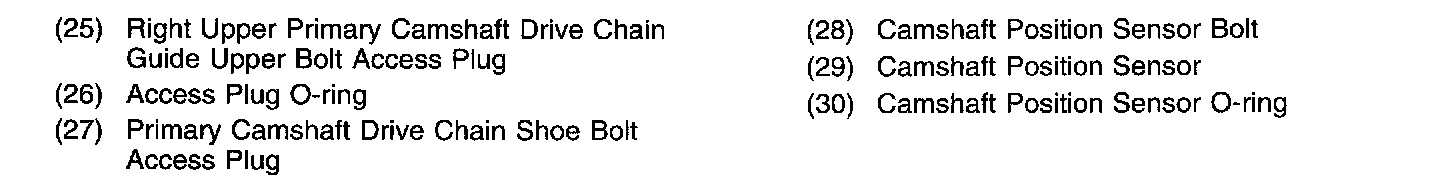

Cylinder Head Assemblies






Water Crossover

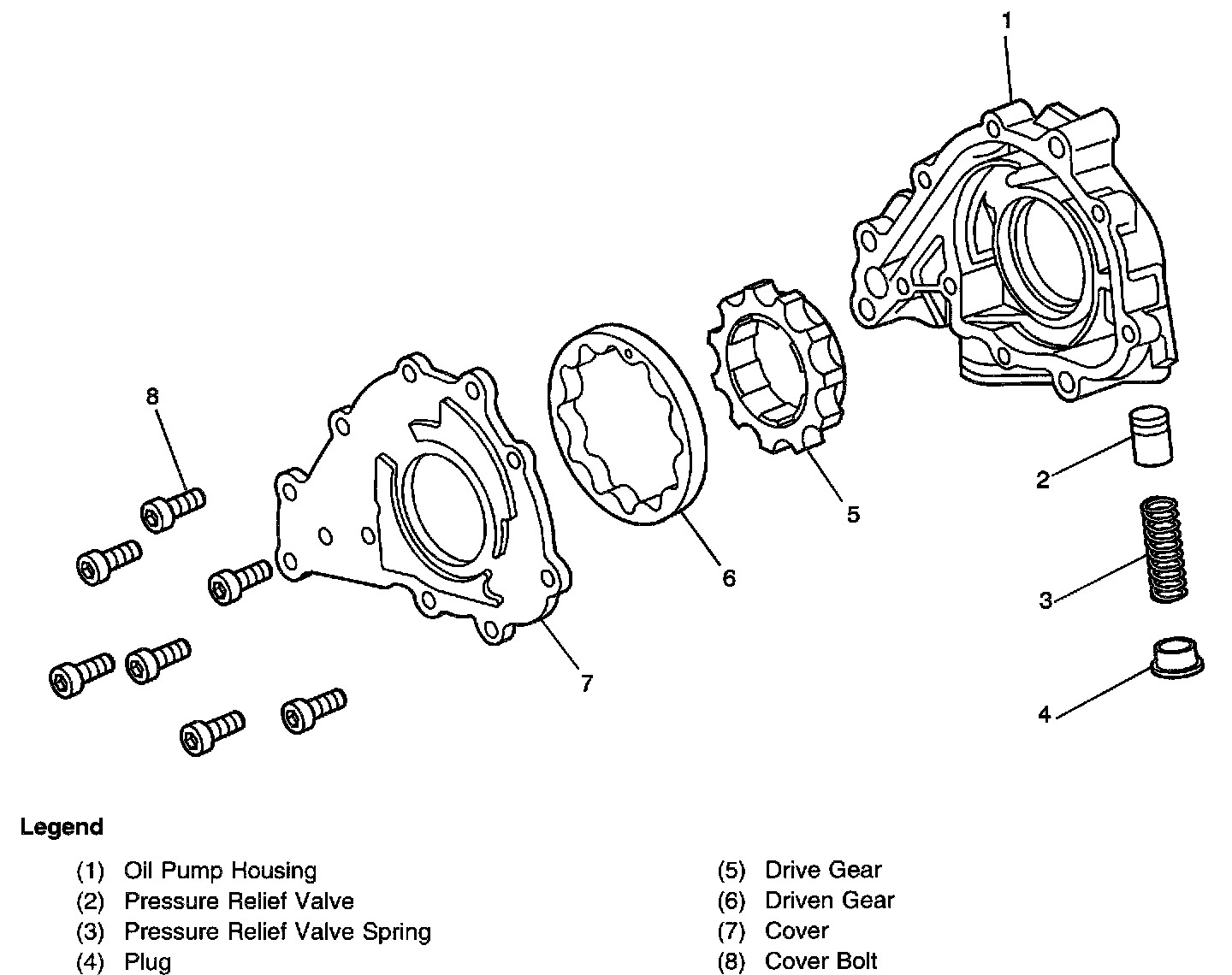

Oil Pump Assembly






Part 1 of 2





Part 2 of 2

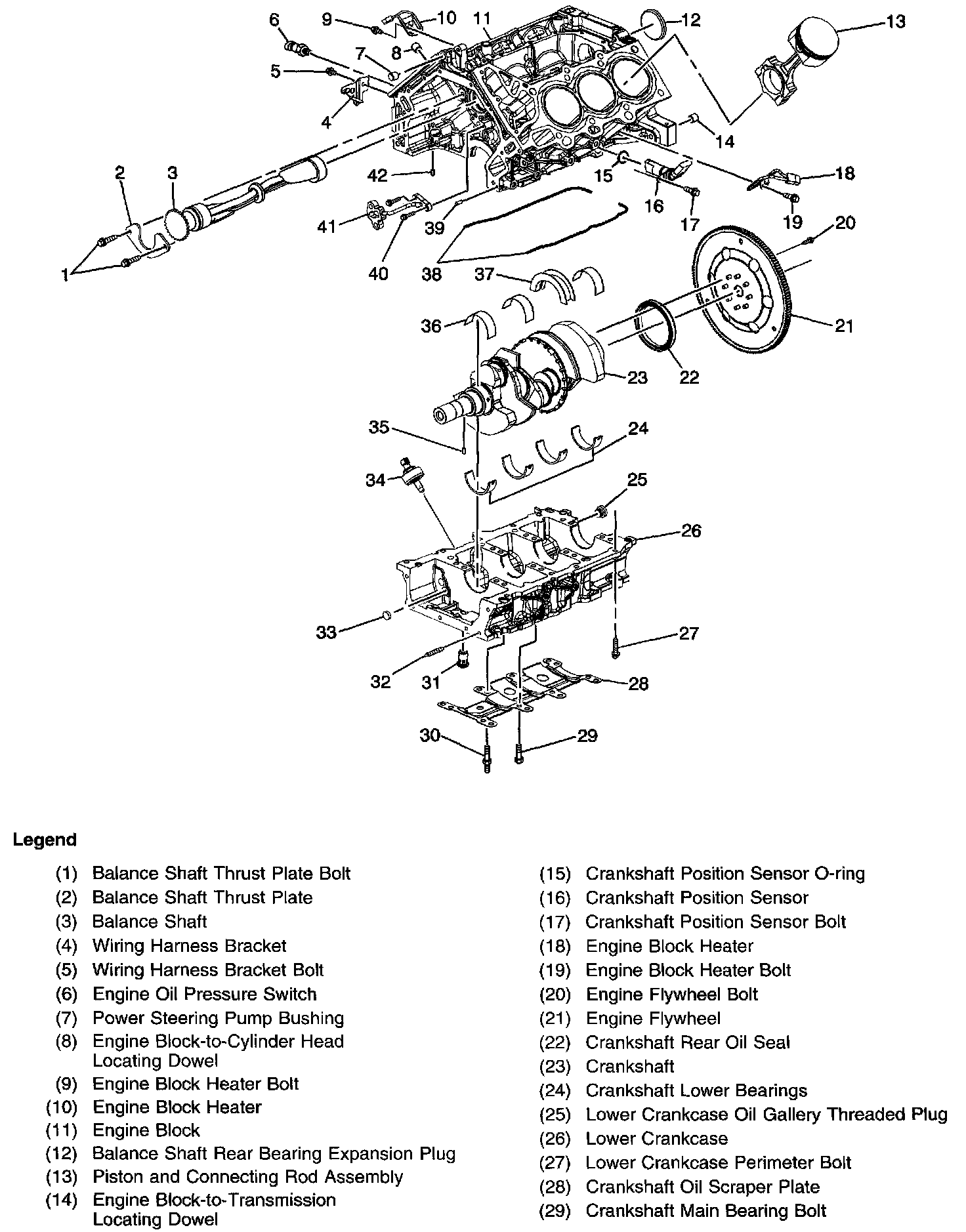

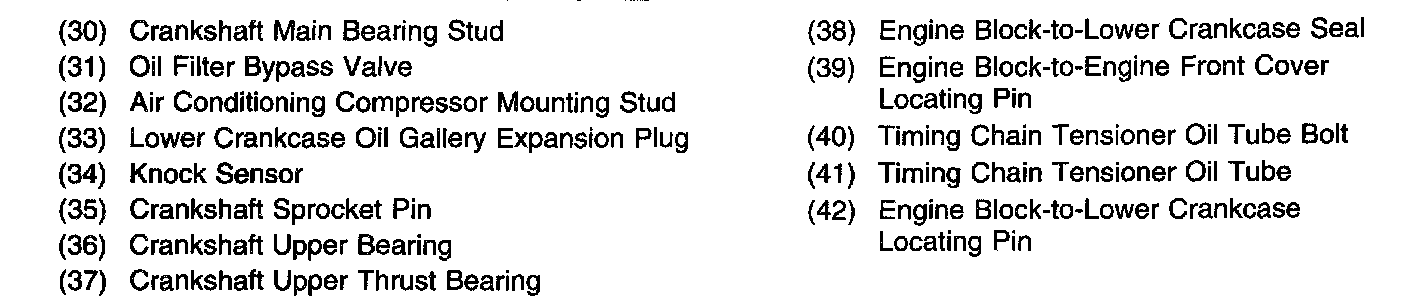

Engine Block Assembly

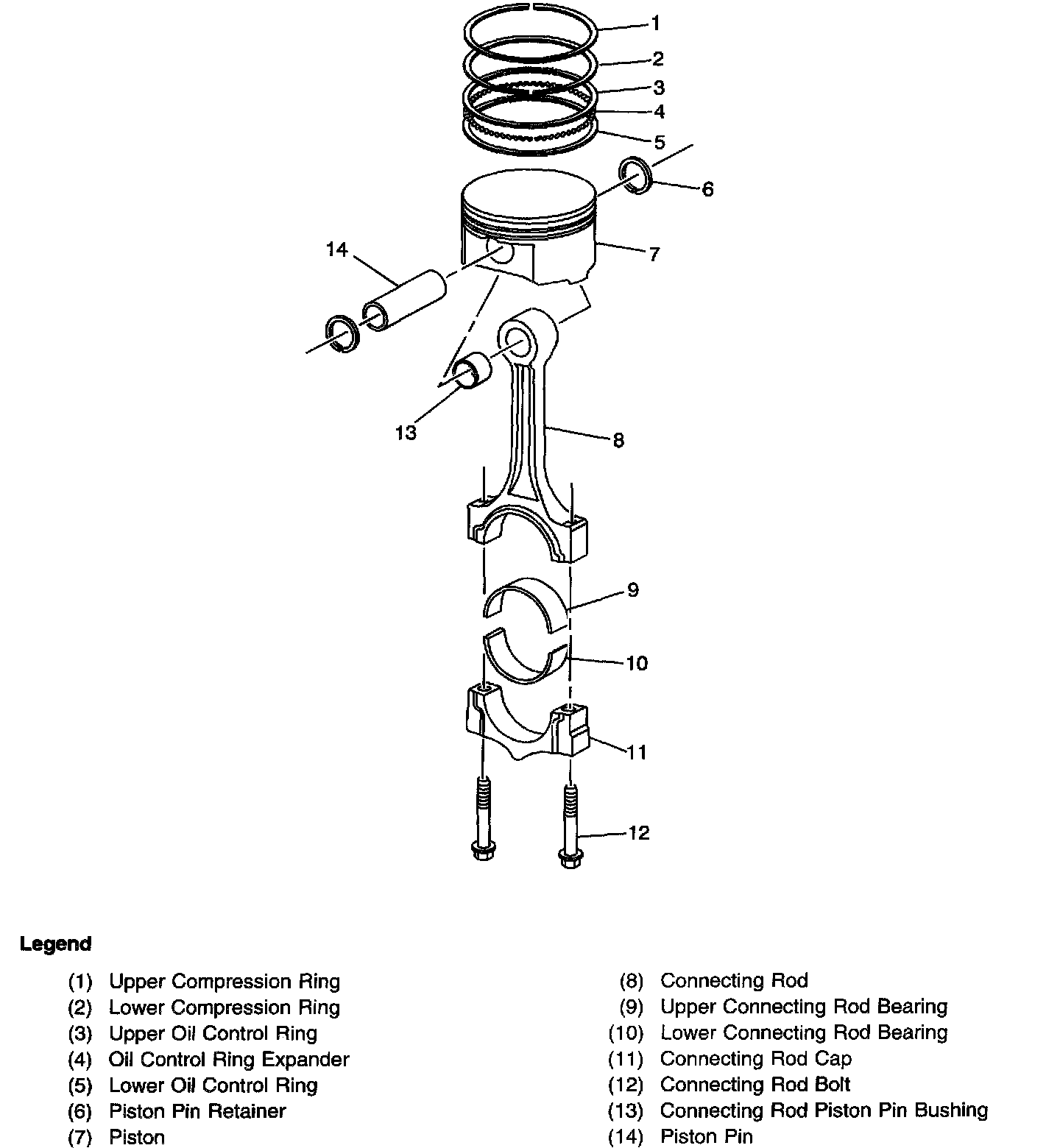

Piston, Rings, Bearing and Connecting Rod
