Compressor Control Valve Assembly Removal (V7 - Direct Mount)
TOOLS REQUIREDJ 41790 Compressor Holding Fixture
1.
Remove the
A/C compressor from the vehicle.
2.

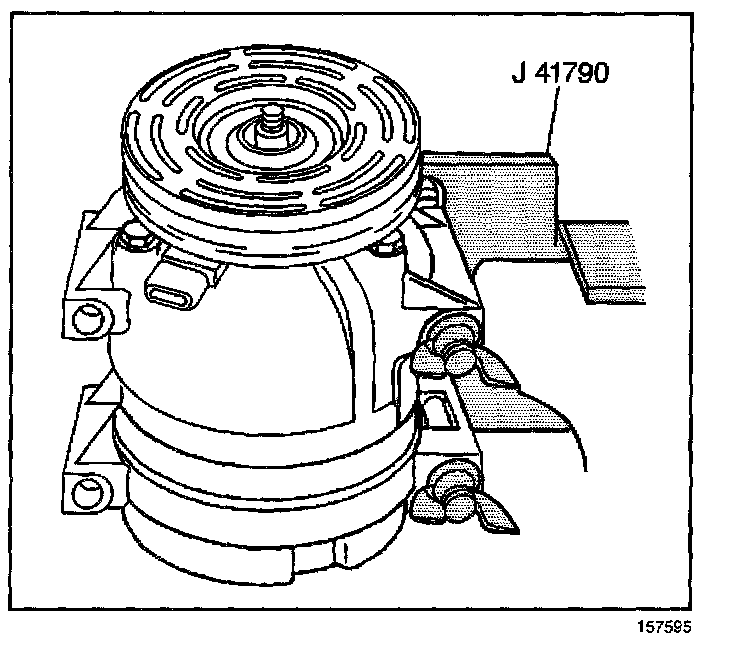

Clamp J 41790 in a vise and attach the
A/C compressor to J 41790.
3.
Using internal snap ring pliers, remove the retaining ring from the
A/C compressor control valve.
4.
Remove the control valve from the
A/C compressor.
