Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor and/or Switch Replacement

Removal Procedure





1. Disconnect the negative battery cable.
2. Raise and support the vehicle. Refer to Vehicle Lifting.
3. Disconnect the electrical connector from the engine oil pressure switch.

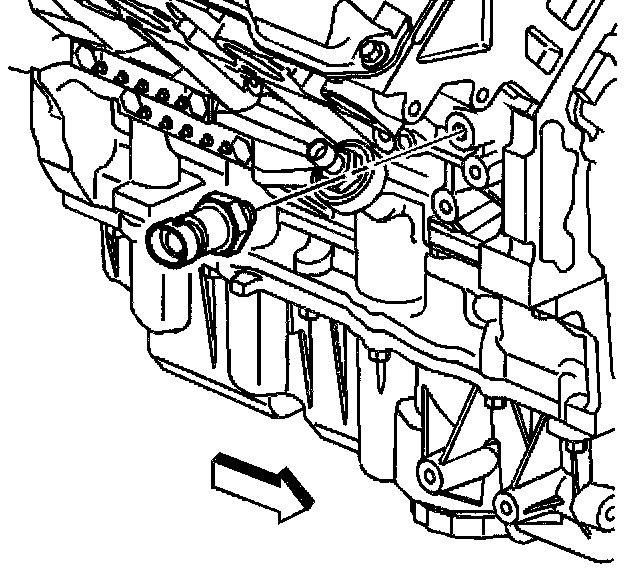

4. Remove the engine oil pressure switch.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the engine oil pressure switch.
- Tighten the switch to 10 Nm (89 inch lbs.).
2. Connect the electrical connector to the engine oil pressure switch.
3. Lower the vehicle.
4. Connect the negative battery ground cable.
