Ignition Coil: Service and Repair

TOOLS REQUIRED
J 43094 Spark Plug Boot Puller

REMOVAL PROCEDURE




1. Remove the fuel injector sight shield.
2. Disconnect the ignition control module electrical connector.

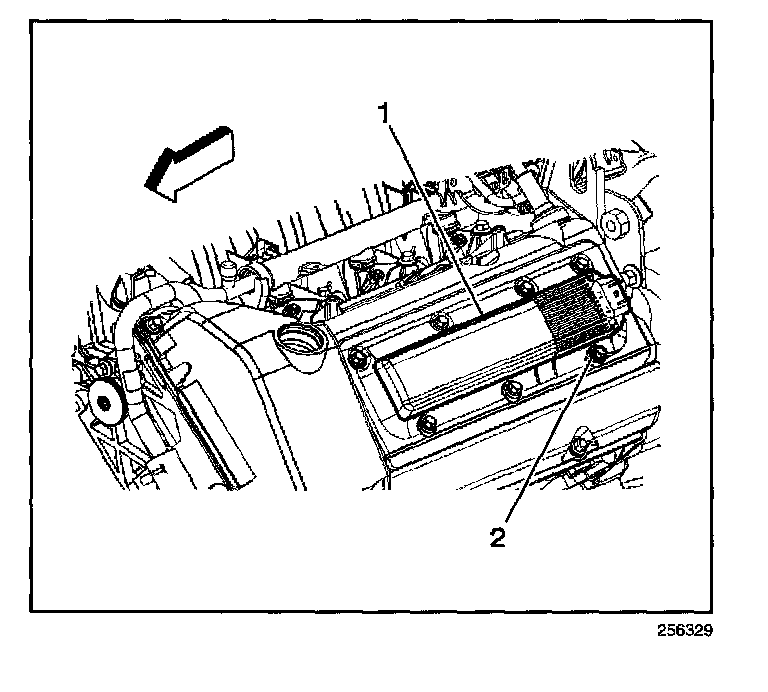

3. Remove the 7 bolts (2) retaining the ignition cassette to the cam cover.

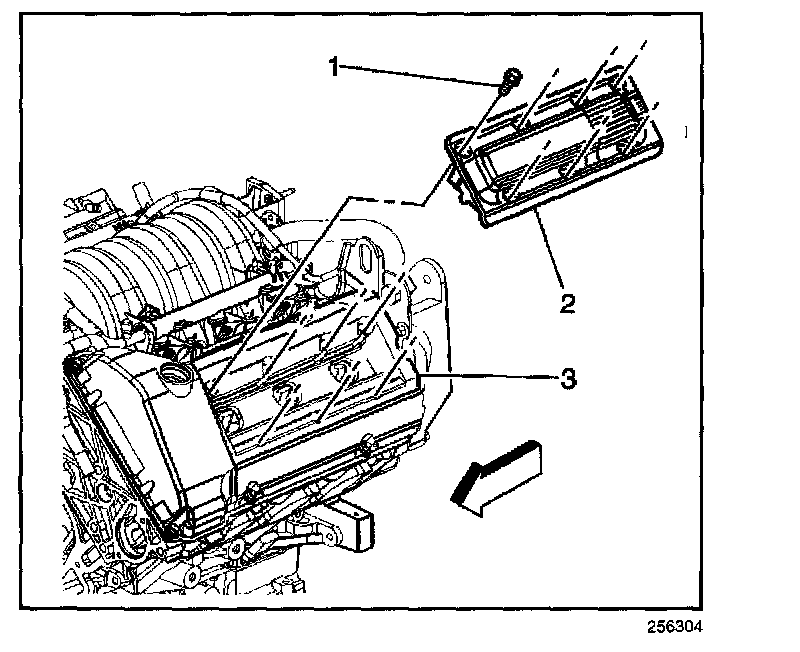

4. Gently pry the cassette (2) away from the cam cover (3) using a screwdriver. Protect finished surfaces from scratches with a shop cloth. Pry a small amount in several locations around the edge of the cassette in order to lift the assembly as evenly as possible. DO NOT insert the screwdriver far enough to tear the perimeter seal on the cassette.
5. Lift the cassette straight up off the spark plugs.




6. Remove the secondary boots (3) from the spark plugs or the ignition coils using a twisting motion to break the seal. Use the J 43094. DO NOT use pliers, screwdrivers, or any unauthorized tool to remove the boots.




7. Remove the cover (4) from the ignition coils (3).
8. Remove the ignition control module screws (1).
9. Remove the ignition control module (2).

INSTALLATION PROCEDURE

IMPORTANT: When servicing the ignition system components, use the following recommended procedures:
^ DO NOT install any component that has visible signs of damage.
^ Inspect the boots for a missing or damaged internal spring.
^ Ensure that the boots are installed right-side up.
^ Ensure that the ignition cassette-to-cam cover ground spring (2) is in place.
^ Repair a torn perimeter seal with an RTV sealant.
^ Clean all the mounting surfaces before installing any components.




1. Install the ignition control module (2) on the ignition coils.

NOTE: Refer to Fastener Notice in Service Precautions.

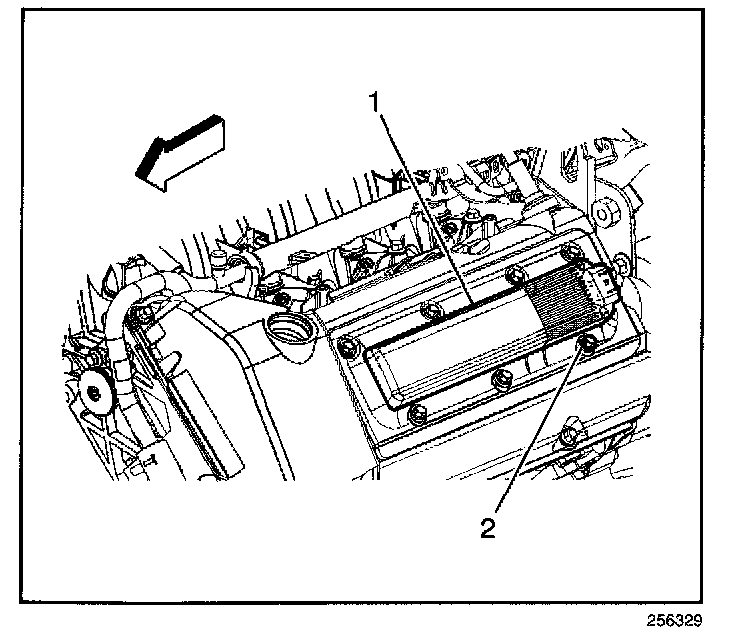

2. Install the ignition control module screws (1).

Tighten
Tighten the screws to 1.1 N.m (10 lb in).

3. Install the cover (4) to the ignition coils (3).




4. Install the boots (3) on the ignition coils until the boots bottom out.

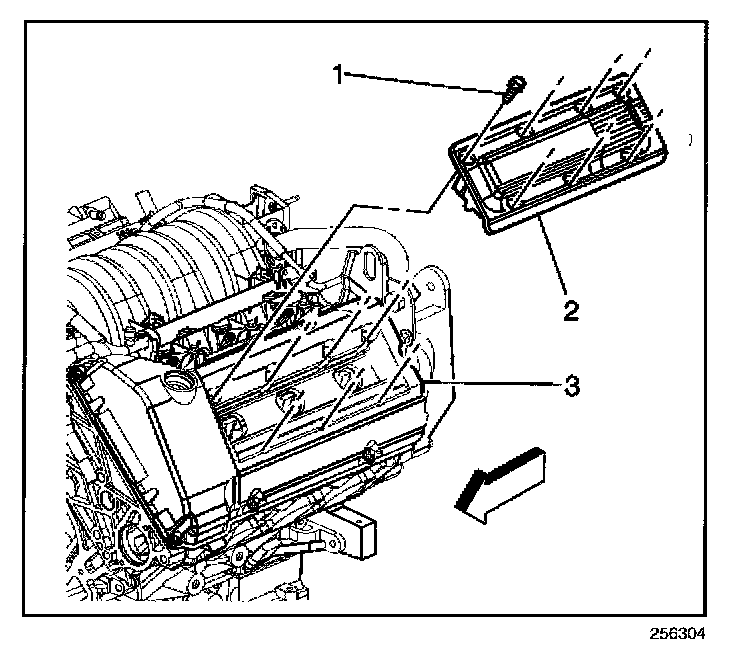

5. Install the cassette assembly (2) straight down onto the spark plugs.

If this is not possible due to space limitations, start the boots onto the spark plugs and then align and start the ignition coil towers into the boots. Press the ignition cassette (2) down on the plugs as straight as possible.




6. Install the 7 bolts (2) that retain the ignition cassette to the cam cover.

Tighten
Tighten the bolts to 9.5 N.m (84 lb in).

7. Connect the ignition control module electrical connector.
8. Install the fuel injector sight shield.
