Inlet

Radiator Hose Replacement - Inlet

^ Tools Required
- J 38185 Hose Clamp Pliers

Removal Procedure





1. Drain the coolant.
2. Using the J 38185 loosen and move the inlet radiator hose clamp (1)
3. Remove the inlet radiator hose from the radiator.





4. Using the J 38185 loosen and move the inlet radiator hose clamp at the engine.
5. Remove the inlet radiator hose from the engine.

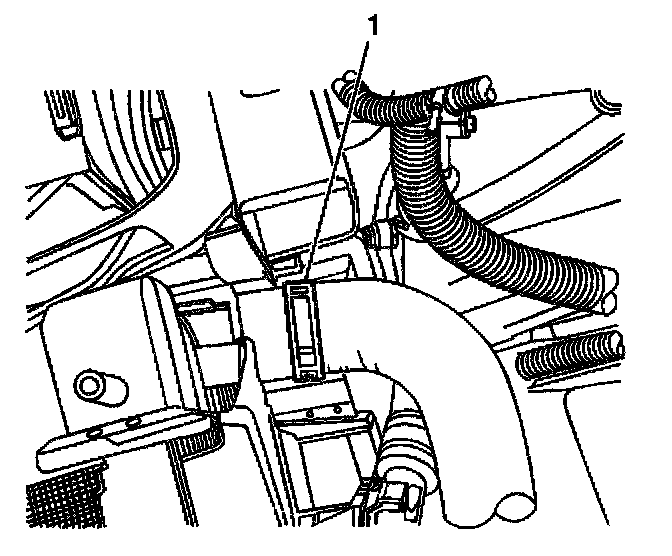

6. Disconnect the hose clip (1) at the upper radiator support bar and remove the hose.

Installation Procedure





1. Install the inlet radiator hose to the engine.
2. Using the J 38185 reposition the clamp at the engine.
3. Position the hose and fasten to the clamp (1) at the upper radiator support.





4. Install the inlet radiator hose to the radiator.
5. Using the J 38185 reposition the hose clamp (1) at the radiator.
6. Fill the cooling system.
