System Specifications

Special Tools
J 45059 Angle Meter

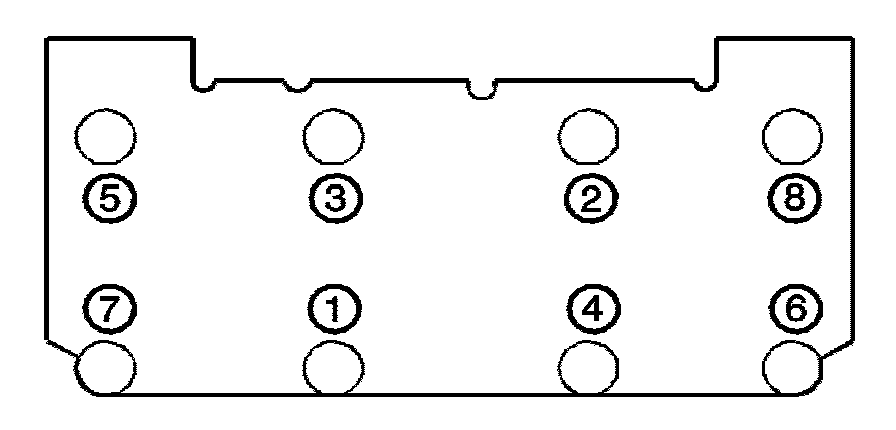

Cylinder Head - Left Side

Tighten
1. Tighten the cylinder head bolts a first to 60 Nm (44 lb ft).
2. Tighten the cylinder head bolts a final pass in sequence to 95 degrees using the J45059.

Cylinder Head - Right Side

Tighten
1. Tighten the cylinder head bolts a first to 60 Nm (44 lb ft).
2. Tighten the cylinder head bolts a final pass in sequence to 95 degrees using the J45059.
